WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900800300

Windshield Wiper And Washer Switch LH Side (Vehicles Without Auto Wiper System)

1.  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9uuw00000734

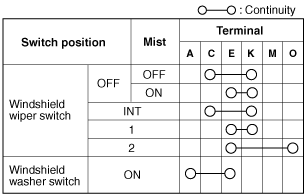

•  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9uuw00000735

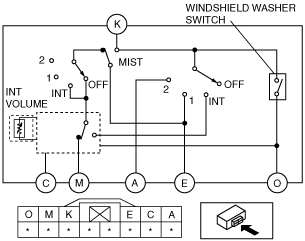

Windshield Wiper And Washer Switch RH Side (Vehicles Without Auto Wiper System)

1.  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9wzw00000671

•  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9wzw00000672

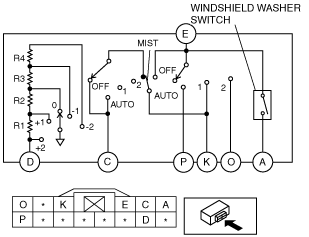

Windshield Wiper And Washer Switch LH Side (Vehicles With Auto Wiper System)

1.  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9uuw00000736

•  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9uuw00000737

ac9uuw00000738

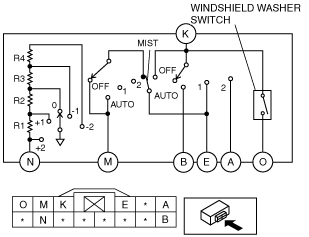

Windshield Wiper And Washer Switch RH Side (Vehicles With Auto Wiper System)

1.  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9wzw00000673

•  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

ac9wzw00000674

ac9wzw00000675
