AUDIO CONTROL SWITCH CONSTRUCTION/OPERATION

id092000100600

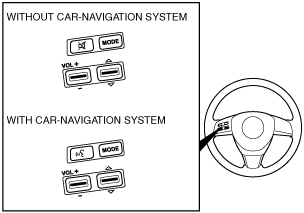

Construction

•  The audio control switch is located on the steering wheel.
ac9wzn00000241

Operation


Without car-navigation system

ac9wzn00000085

No.

Button (component)

Function
1
Mute switch
Mute
2
Mode switch
Selects the audio mode
(FM1→FM2→AM→CD→AUX)*
3
Volume switch
Volume up/down
4
SEEK switch
Selects radio stations or track up/down

*  :It is only switched to the mode which has been connected.


With car-navigation system

ac9wzn00000242

No.

Button (component)

Function
1
Voice switch
Performs car navigation system operation by voice.
2
Mode switch
Selects the audio mode
(FM1→FM2→AM→CD→AUX)*
3
Volume switch
Volume up/down
4
SEEK switch
Selects radio stations or track up/down

*  :It is only switched to the mode which has been connected.
