NAVIGATION FUNCTION

id092000101300

Outline

• A vehicle's position is measured by a hybrid method of autonomous navigation (using yaw-rate signals from the gyro sensor and vehicle speed signals from the instrument cluster) and GPS navigation (using signals from GPS satellites). Accurate detection of the vehicle's position is possible based on the adoption of a map-matching function which specifies the vehicle's position as compared with the map data read from the DVD-ROM and the vehicle’s position measured from autonomous navigation and GPS navigation.

• Guidance to destination is provided via display of the recommended route on the map screen, as well as voice messaging guidance at intersections and points of divergence.

• Based on inputted signals and information on the DVD-ROM, the following features are available:

― Destination can be selected based on address, POI (Point of Interest), memory point, home, preset destination, motorway entry/exit, coordinates, map or previous destination.

― Route information is available in map, turn list, turn arrow, enlarged junction diagram, motorway information mode.

― Voice guidance and menus are available in three languages.

― A map screen that displays maps in thirteen steps with scales from 50 m to 256 km {1/32 mile to 128 mile}.

― A map screen that displays routes according to search condition (info) and route preferences.

Search condition

Quick: The route with the quickest time will be used.

Altern.: The alternative route will be used.

Short: The route with the shortest distance.

Route preferences

Allow Major roads

Allow toll road

Allow restricted road

Allow ferry

Map Screen Selection

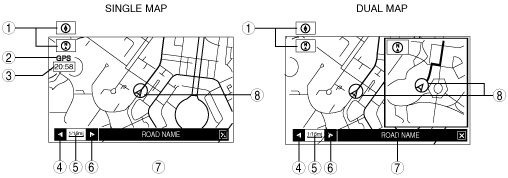

Current position map

• The location of the vehicle and surrounding area are shown.

ac9wzn00000245

No.

Contents

Description

1

Map orientation

North up

• Geographic north is up.

Head up

• The direction you are heading is up.

2

GPS reception indicator

Illuminates when receiving signals from 3 or more satellites.

3

Clock

Clock will be displayed when set using the navigation screen.

4

Zoom in button

Enlarges the map. (more detail)

5

Map scale

The map can be displayed in 13 steps with scale from 50 m to 256 km {1/32 mile to 128 mile}

6

Zoom out button

Reduces the map.

7

Road name

Shows the name of the road you are currently driving on.

8

Vehicle position

Shows the current position and direction of the vehicle.

No.	Contents	Description
1	Map orientation	North up • Geographic north is up. Head up • The direction you are heading is up.
2	GPS reception indicator	Illuminates when receiving signals from 3 or more satellites.
3	Clock	Clock will be displayed when set using the navigation screen.
4	Zoom in button	Enlarges the map. (more detail)
5	Map scale	The map can be displayed in 13 steps with scale from 50 m to 256 km {1/32 mile to 128 mile}
6	Zoom out button	Reduces the map.
7	Road name	Shows the name of the road you are currently driving on.
8	Vehicle position	Shows the current position and direction of the vehicle.

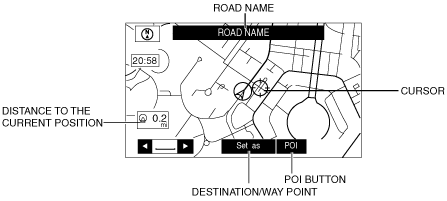

Scroll map mode

• This map can be scrolled with the cursor.

ac9wzn00000246

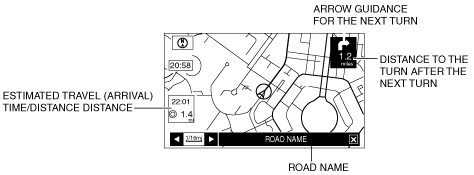

Guide mode

• Displays an enlarged view of the road using an arrow to indicate destination, and also displays route and destination guidance information (while in route guidance.).

ac9wzn00000247

Intersection zoom map

• An enlarged map is displayed when approaching a fork or intersection (while in route guidance.). It is activated by selecting Guidance Screen (On) in setup mode.

ac9wzn00000248

Turn list

• While using route guidance, the directions for the next intersection where you have to turn are shown as a turn list.

ac9wzn00000249

Turn arrow

• While using route guidance, the directions for the next intersection where you have to turn are shown as a turn arrow.

ac9wzn00000250

Destination Setting Function

Outline

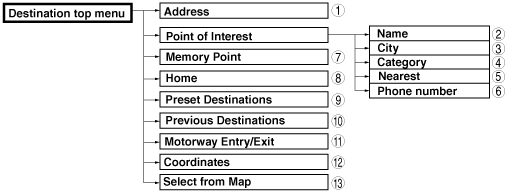

• The following instructions explain how destinations can be chosen and set.

Note

• A destination can be set to where the crosshair cursor indicates by selecting the Destination option of the scroll map mode pop-menu.

ac9wzn00000251

No.

Contents

1

Sets destination by inputting address.

2

Sets destination by inputting POI name.

3

Sets destination by selecting POI city, inputting city name and selecting POI.

4

Sets destination by selecting POI category, inputting target name and selecting POI.

5

Sets destination by inputting POI nearest facility.

6

Sets destination by selecting POI phone number, inputting phone number and selecting POI.

7

Sets destination from a list of points stored by the user.

8

Sets destination to home.

9

Sets destination to preset destination point.

10

Sets destination from a list of recent destinations.

11

Sets destination by selecting Motorway Entry / Exit.

12

Sets destination by inputting coordinates.

13

Sets destination by moving the crosshair cursor to the destination when in scroll map mode.

No.	Contents
1	Sets destination by inputting address.
2	Sets destination by inputting POI name.
3	Sets destination by selecting POI city, inputting city name and selecting POI.
4	Sets destination by selecting POI category, inputting target name and selecting POI.
5	Sets destination by inputting POI nearest facility.
6	Sets destination by selecting POI phone number, inputting phone number and selecting POI.
7	Sets destination from a list of points stored by the user.
8	Sets destination to home.
9	Sets destination to preset destination point.
10	Sets destination from a list of recent destinations.
11	Sets destination by selecting Motorway Entry / Exit.
12	Sets destination by inputting coordinates.
13	Sets destination by moving the crosshair cursor to the destination when in scroll map mode.

Voice Recognition Function

• Voice control can be carried out by simply pressing voice switch and speaking voice command into the microphone.

ac9wzn00000252
