CAR-NAVIGATION UNIT CONSTRUCTION
id092000102300
Structural view
ac9wzn00000254
|
Terminal Layout and Signal
Car-navigation unit connector
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Front door speaker LH (+)
|
|
1B
|
B+
|
|
|
1C
|
Front door speaker LH (–)
|
|
|
1D
|
Front door speaker RH (+)
|
|
|
1E
|
TNS (+)
|
|
|
1F
|
Front door speaker RH (–)
|
|
|
1G
|
Illumination (–)
|
|
|
1H
|
—
|
|
|
1I
|
Vehicle speed signal
|
|
|
1J
|
AMP control
|
|
|
1K
|
Parking brake signal
|
|
|
1L
|
Dimmer cancel
|
|
|
1M
|
Reverse signal
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
CAN (+)
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
CAN (–)
|
|
|
1R
|
ACC
|
|
|
1S
|
—
|
|
|
1T
|
—
|
|
|
1U
|
—
|
|
|
1V
|
—
|
|
|
1W
|
Power ground
|
|
|
1X
|
—
|
|
 |
2A
|
Power ground
|
|
2B
|
—
|
|
|
2C
|
Input signal RH (+)
|
|
|
2D
|
—
|
|
|
2E
|
Input signal LH (+)
|
|
|
2F
|
—
|
|
|
2G
|
Signal ground
|
|
|
2H
|
—
|
|
|
2I
|
—
|
|
|
2J
|
—
|
|
|
2K
|
—
|
|
|
2L
|
—
|
|
|
2M
|
AUX control
|
|
|
2N
|
—
|
|
|
2O
|
ACC
|
|
|
2P
|
B+
|
|
 |
3A
|
B+
|
|
3B
|
Power ground
|
|
|
3C
|
Video ground
|
|
|
3D
|
Camera input
|
|
 |
4A
|
—
|
|
4B
|
—
|
|
|
4C
|
—
|
|
|
4D
|
—
|
|
|
4E
|
—
|
|
|
4F
|
—
|
|
|
4G
|
—
|
|
|
4H
|
—
|
|
|
4I
|
—
|
|
|
4J
|
—
|
|
|
4K
|
—
|
|
|
4L
|
—
|
|
|
4M
|
—
|
|
|
4N
|
Shield ground
|
|
|
4O
|
Navi (+)
|
|
|
4P
|
Navi (-)
|
|
|
4Q
|
—
|
|
|
4R
|
—
|
|
|
4S
|
—
|
|
|
4T
|
—
|
|
|
4U
|
—
|
|
|
4V
|
—
|
|
|
4W
|
—
|
|
|
4X
|
—
|
|
 |
5A
|
Mic (+)
|
|
5B
|
Mic (-)
|
|
|
5C
|
Mic B+
|
|
|
5D
|
Ground
|
|
|
5E
|
Mic detect
|
|
|
5F
|
—
|
|

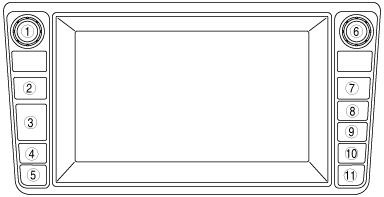

Button Location
ac9uun00000669
|
|
1
|
TUNE/AUDIO button
|
|
2
|
LOAD/EJECT button
|
|
3
|
SEEK/TRACK button
|
|
4
|
SOURCE button
|
|
5
|
SCAN button
|
|
6
|
POWER/VOLUME button
|
|
7
|
INFO button
|
|
8
|
MAP/VOICE button
|
|
9
|
RETURN button
|
|
10
|
MENU button
|
|
11
|
DISP button
|
