REAR MOUNT CAMERA CONSTRUCTION/OPERATION


id092000109800

•  The rear mount camera is located in the liftgate.
ac9uun00000433
•  Super wide angle lens that can shoot a broad spectrum has been combined with a small (1/4 in.) color CCD*1 camera which has a high-sensitivity CCD image element.
*1  :Charge Coupled Device

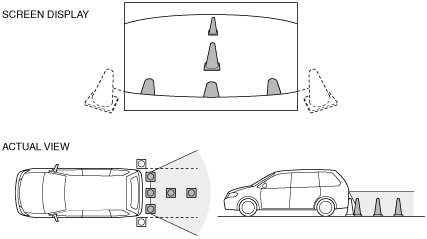

Displayable Range

•  The displayable range varies depending on the vehicle and road conditions.
•  The displayable range is limited. Objects under the bumper or around the bumper ends cannot be displayed.
•  The distance appearing in the displayed image is different from the actual distance because the rear mount camera is equipped with a specific lens.
acxuun00000358
•  It may be difficult to see the display under the following conditions; however, it does not indicate a malfunction:
―  In darkened areas.
―  When the temperature around the lens is high/low.
―  When the camera is wet such as on a rainy day or during period of high humidity.
―  When foreign material such as mud is stuck around the camera.
―  When the camera lens reflects sunlight or headlight beams.
•  If the camera picks up a high-intensity light such as sunlight reflected off the vehicle body, a bright belt (light line) may appear on the display (Smear phenomenon).
