AUDIO CONTROL SWITCH REMOVAL/INSTALLATION

id092000800200

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable wait for 1min more

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Remove in the order indicated in the table.

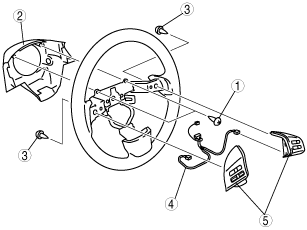

ac9uuw00002209

1	Screw A
2	Cover
3	Screw B
4	Connector and wiring harness
5	Audio control switch

6.  Install in the reverse order of removal.
