AUDIO CONTROL SWITCH INSPECTION

id092000800300

1.  Verify the resistance and continuity between the audio control switch terminals.

ac9wzw00000771

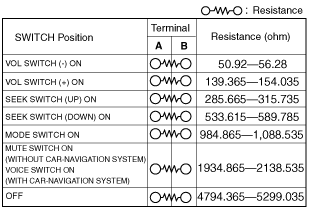

•  If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

ac9wzw00000772

2.  Apply battery positive voltage to audio control switch terminal D, and connect terminal E to ground.

ac9wzw00000773

3.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the audio control switch.
