AUXILIARY JACK REMOVAL/INSTALLATION

id092000809900

1.  Disconnect the negative battery cable.

2.  Remove the console cover. (See CONSOLE COVER REMOVAL/INSTALLATION.)

3.  Disconnect the auxiliary jack connector.

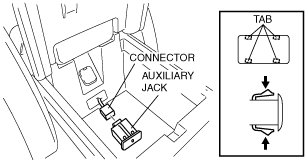

ac9uuw00000539

4.  Squeeze the tabs of auxiliary jack and pull it outward to remove it.

5.  Install in the reverse order of removal.
