BODY CONTROL MODULE (BCM) INSPECTION
id094000800300
1. Remove the front scuff plate inner (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION)
2. Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove the dashboard under cover (LH). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
4. Set the bonnet release lever out of the way. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
5. Remove the BCM with the connector connected.
6. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

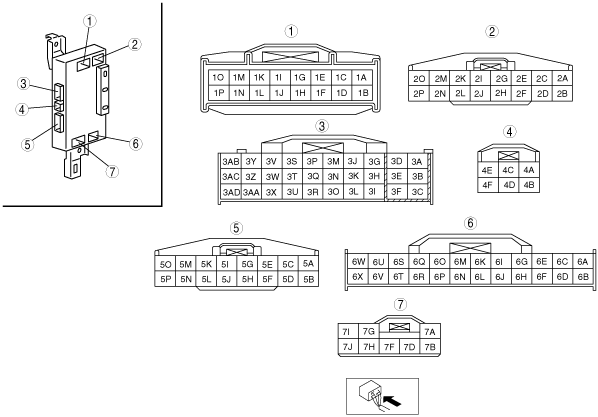

Terminal Voltage Table (Reference)
ac9uuw00000703
|
|
Terminal |
Signal |
Connected to |
Measurement condition |
Voltage (V) |
Inspection item (s) |
|
|---|---|---|---|---|---|---|
|
1A
|
Oil pressure switch signal
|
Oil pressure switch
|
Ignition switch at ON
|
When the engine is running (oil pressure switch on)
|
1.0 or less
|
• Oil pressure switch
• Related wiring harnesses
|
|
When the engine is not running (oil pressure switch off)
|
B+
|
|||||
|
1B*6
|
Bonnet latch switch signal
|
Bonnet latch switch
|
Bonnet open
(Bonnet latch switch off)
|
Wave pattern (See Pattern 2.)
|
• Bonnet latch switch
• Related wiring harnesses
|
|
|
Bonnet closed
(Bonnet latch switch on)
|
1.0 or less
|
|||||
|
1C
|
Washer level signal
|
Washer fluid-level sensor
|
Ignition switch at ON
|
Washer level below MIN.
|
1.0 or less
|
• Washer fluid-level sensor
• Related wiring harnesses
|
|
Washer level above MIN.
|
B+
|
|||||
|
1D
|
Brake fluid level signal
|
Brake fluid-level sensor
|
Ignition switch at ON
|
Brake fluid level below MIN.
|
1.0 or less
|
• Brake fluid level sensor
• Related wiring harnesses
|
|
Brake fluid level above MIN.
|
B+
|
|||||
|
1E*6
|
Lock/unlock input (passenger-side door lock-link switch)
|
Passenger-side door lock-link switch
|
Passenger-side door locked
|
With PLG system
Wave pattern (See Pattern 3.)
|
• Passenger-side door lock-link switch
• Related wiring harnesses
|
|
|
Without PLG system
Wave pattern (See Pattern 1.)
|
||||||
|
Passenger-side door unlocked
|
1.0 or less
|
|||||
|
1F
|
Front turn light (LH) control
|
Front turn light (LH)
|
Turn switch (LH) on
|
Front turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Front turn light (LH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
||||||
|
Other
|
1.0 or less
|
|||||
|
1G
|
Front turn light (RH) control
|
Front turn light (RH)
|
Turn switch (RH) on
|
Front turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Front turn light (RH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
||||||
|
Other
|
1.0 or less
|
|||||
|
1H
|
Lock/unlock signal
|
Door lock switch (passenger side)
|
Door lock switch (passenger side) is pressed to lock.
|
2.5
|
• Door lock switch (passenger side)
• Related wiring harnesses
|
|
|
Door lock switch (passenger side) is pressed to unlock.
|
1.0 or less
|
|||||
|
Other
|
5
|
|||||
|
1I
|
Front side turn light (RH) control
|
Front side turn light (RH)
|
Turn switch (RH) on
|
Front side turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Front side turn light (RH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
||||||
|
Other
|
1.0 or less
|
|||||
|
1J
|
CAN_L
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
1K
|
Parking brake switch signal
|
Parking brake switch
|
Ignition switch at ON
|
Parking brake switch on
|
1.0 or less
|
• Parking brake switch
• Related wiring harnesses
|
|
Parking brake switch off
|
B+
|
|||||
|
1L
|
CAN_H
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
—
|
• Related wiring harnesses
|
|
|
1M
|
Back-up light power supply
|
Back-up light relay
|
Ignition switch at ON
|
The selector lever is in the R position
|
B+
|
• Back-up light relay
• Back-up light
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|||||
|
1N
|
Power supply
|
• Seat warmer relay*1
• Air intake actuator
• Front blower relay
• Rear blower relay
• Rear window defroster relay
|
Seat warmer switch at ON*1
|
Ignition switch at ON
|
B+
|
• Seat warmer relay*1
• Air intake actuator
• Front blower relay
• Rear blower relay
• Rear window defroster relay
• Related wiring harnesses
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
1O
|
Horn control
|
Horn relay
|
Transmitter LOCK button is pressed twice within 5 s.
|
B+→ 1.0 or less → B+
|
• Horn relay
• Related wiring harnesses
|
|
|
Other
|
B+
|
|||||
|
1P
|
Power supply
|
ACC relay
|
Ignition switch at ACC position
|
B+
|
• ACC relay
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
2A
|
Interior light power supply
|
ROOM 15 A fuse
|
Under any condition
|
B+
|
• ROOM 15 A fuse
• Related wiring harnesses
|
|
|
2B
|
Hazard power supply
|
HAZARD 15 A fuse
|
Under any condition
|
B+
|
• HAZARD 15 A fuse
• Related wiring harnesses
|
|
|
2C
|
Courtesy light power supply
|
Courtesy light (RH)
|
Under any condition
|
B+
|
• Courtesy light (RH)
• Related wiring harnesses
|
|
|
2D
|
Rear washer motor power supply
|
Rear washer motor
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Rear washer motor
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
2E
|
Courtesy light control
|
Courtesy light (RH)
|
Within 30 min after any door is opened.
|
1.0 or less
|
• Courtesy light (FR)
• Related wiring harnesses
|
|
|
30 min or more after any door is opened.
|
B+
|
|||||
|
All doors closed
|
B+
|
|||||
|
2F
|
Power supply
|
Back-up light relay/position memory control module*3
|
Ignition switch at ON
|
B+
|
• Back-up light relay
• Position memory control module*3
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
2G
|
Signal GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
2H
|
Door lock control (passenger side)
|
Door lock actuator
|
Door lock actuator locking
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuator (passenger side)
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
2I
|
Light control
|
Front side marker light/parking light (LH)
|
Light switch at TNS
|
B+
|
• TNS relay
• Related wiring harnesses
|
|
|
Light switch off
|
1.0 or less
|
|||||
|
2J
|
—
|
—
|
—
|
—
|
—
|
|
|
2K
|
Light control
|
Front side marker light/parking light (RH)
|
Light switch at TNS
|
B+
|
• TNS relay
• Related wiring harnesses
|
|
|
Light switch off
|
1.0 or less
|
|||||
|
2L
|
Door unlock control (passenger side)
|
Door lock actuator
|
Door lock actuator unlocking
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuator (passenger side)
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
2M
|
IG1
|
Check connector
|
Ignition switch at ON
|
B+
|
• Check connector
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
2N
|
Power GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
2O
|
Rear washer motor control
|
Rear washer motor
|
Ignition switch at ON
|
Rear washer switch on
|
1.0 or less
|
• Rear washer motor
• Related wiring harnesses
|
|
Rear washer switch off
|
B+
|
|||||
|
2P
|
Power door lock power supply
|
D/L 25 A fuse
|
Under any condition
|
B+
|
• D/L 25 A fuse
• Related wiring harnesses
|
|
|
3A
|
—
|
—
|
—
|
—
|
—
|
|
|
3B
|
Serial communication
|
• Keyless control module (with advanced keyless system)
• Keyless receiver (with keyless entry system)
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
3C
|
—
|
—
|
—
|
—
|
—
|
|
|
3D
|
Turn switch input (LH)
|
Turn switch
|
Ignition switch at ON
|
Turn switch at left position
|
1.0 or less
|
• Turn switch
• Related wiring harnesses
|
|
Other
|
B+
|
|||||
|
3E
|
Driver-side door key cylinder switch signal
|
Driver-side door key cylinder switch
|
At the moment key cylinder is unlocked
|
1.0 or less
|
• Driver-side door key cylinder switch
• Related wiring harnesses
|
|
|
At the moment key cylinder is locked
|
2.5
|
|||||
|
Other
|
5
|
|||||
|
3F
|
—
|
—
|
—
|
—
|
—
|
|
|
3G
|
Turn switch input (RH)
|
Turn switch
|
Ignition switch at ON
|
Turn switch at right position
|
1.0 or less
|
• Turn switch
• Related wiring harnesses
|
|
Other
|
B+
|
|||||
|
3H
|
—
|
—
|
—
|
—
|
—
|
|
|
3I
|
—
|
—
|
—
|
—
|
—
|
|
|
3J
|
Serial communication
|
Power window main switch
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
3K*4
|
Serial communication
|
Sunroof motor
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
3L
|
—
|
—
|
—
|
—
|
—
|
|
|
3M*6
|
Security light control
|
Instrument cluster
|
Security light on
|
1.0 or less
|
• Instrument cluster
• Related wiring harnesses
|
|
|
Security light off
|
B+
|
|||||
|
3N
|
Steering angle sensor GND
|
Steering angle sensor
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
3O
|
—
|
—
|
—
|
—
|
—
|
|
|
3P
|
Rear wiper switch signal (on)
|
Rear wiper and washer switch
|
Ignition switch at ON
|
Rear wiper switch at ON position
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harnesses
|
|
Other
|
B+
|
|||||
|
3Q
|
Rear wiper switch signal (INT)
|
Rear wiper and washer switch
|
Ignition switch at ON
|
Rear wiper switch at INT position
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harnesses
|
|
Other
|
B+
|
|||||
|
3R
|
Lock/unlock signal
|
Door lock switch (driver side)
|
Door lock switch (driver side) is pressed to lock.
|
2.5
|
• Door lock switch (driver-side)
• Related wiring harnesses
|
|
|
Door lock switch (driver side) is pressed to unlock.
|
1.0 or less
|
|||||
|
Other
|
5
|
|||||
|
3S
|
Steering angle sensor signal (B)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Related wiring harnesses
|
|
|
3T
|
Steering angle sensor signal (C)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Related wiring harnesses
|
|
|
3U
|
Horn switch signal
|
Horn switch
|
Horn switch off
|
B+
|
• Horn switch
• Clock spring
• Related wiring harnesses
|
|
|
Horn switch on
|
1.0 or less
|
|||||
|
3V
|
Steering angle sensor power supply
|
Steering angle sensor
|
Fifteen hours after key removed and all doors closed.
|
approx. 0.5
|
• Steering angle sensor
• Related wiring harnesses
|
|
|
Other
|
5
|
|||||
|
3W
|
Steering angle sensor signal (A)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Related wiring harnesses
|
|
|
3X
|
Steering angle sensor signal (Z)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Related wiring harnesses
|
|
|
3Y
|
Front side turn light (LH) control
|
Front side turn light (LH)
|
Turn switch (LH) on
|
Front side turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Front side turn light (LH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
||||||
|
Other
|
1.0 or less
|
|||||
|
3Z
|
CAN_L
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
3AA
|
CAN_H
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
3AB
|
Ignition key illumination control
|
• Steering lock unit (with advanced keyless system)
• Ignition key illumination (with keyless entry system)
|
Ignition switch off and driver-side door opened.
|
1.0 or less
|
• Ignition key illumination bulb
• Related wiring harnesses
|
|
|
15 s or more after all doors closed.
|
B+
|
|||||
|
3AC*5
|
CAN_L
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
3AD*5
|
CAN_H
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
4A
|
BCM power supply
|
METER 10 A fuse
|
Ignition switch at ON
|
B+
|
• METER 10 A fuse
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
4B
|
Courtesy light control
|
Courtesy light (LH)
|
Within 30 min after any door is opened.
|
1.0 or less
|
• Courtesy light (LH)
• Related wiring harnesses
|
|
|
30 min or more after any door is opened.
|
B+
|
|||||
|
All doors closed
|
B+
|
|||||
|
4C
|
—
|
—
|
—
|
—
|
—
|
|
|
4D
|
IG1
|
SAS 7.5 A fuse
|
Ignition switch at ON
|
B+
|
• SAS 7.5 A fuse
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
4E
|
TNS signal
|
TNS relay
|
Light switch at TNS position
|
B+
|
• TNS relay
• TAIL 10 A fuse
• Related wiring harnesses
|
|
|
Light switch off
|
1.0 or less
|
|||||
|
4F
|
ACC
|
MIRROR 7.5 A fuse
|
Ignition switch at ACC
|
B+
|
• MIRROR 7.5 A fuse
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
5A
|
IG2
|
R.WIPER 15 A fuse
|
Ignition switch at ON
|
B+
|
• R.WIPER 15 A fuse
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
5B
|
—
|
—
|
—
|
—
|
—
|
|
|
5C
|
—
|
—
|
—
|
—
|
—
|
|
|
5D
|
Power supply
|
• Keyless control module (with advanced keyless system)
• Keyless receiver (with keyless entry system)
|
Under any condition
|
B+
|
• Keyless control module (with advanced keyless system)
• Keyless receiver (with keyless entry system)
• Related wiring harnesses
|
|
|
5E
|
Door unlock control (driver side)
|
Door lock actuator
|
Door lock actuator unlocking
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuator (driver side)
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
5F
|
Courtesy light power supply
|
Courtesy light (LH)
|
Under any condition
|
B+
|
• Courtesy light (LH)
• Related wiring harnesses
|
|
|
5G
|
—
|
—
|
—
|
—
|
—
|
|
|
5H
|
Interior light power supply
|
• Key reminder switch
• Ignition key illumination
|
Under any condition
|
B+
|
• Key reminder switch
• Ignition key illumination
• Related wiring harnesses
|
|
|
5I
|
Door lock control (driver side)
|
Door lock actuator
|
Door lock actuator locking
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuator (driver side)
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
5J*5
|
Back-up light signal
|
Audio unit
|
Ignition switch at ON
|
The selector lever is in the R position
|
B+
|
• Audio unit
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|||||
|
5K
|
Unlock input (Driver-side door lock-link switch)
|
Driver-side door lock-link switch
|
Driver-side door locked
|
Wave pattern (See Pattern 2.)
|
• Driver-side door lock-link switch
• Related wiring harnesses
|
|
|
Driver-side door unlocked
|
1.0 or less
|
|||||
|
5L
|
IG2
|
A/C 7.5 A fuse
|
Ignition switch at ON
|
B+
|
• A/C 7.5 A fuse
• Battery
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
5M
|
Hazard warning switch signal
|
Hazard warning switch
|
Hazard warning switch on
|
1.0 or less
|
• Hazard warning switch
• Related wiring harnesses
|
|
|
Hazard warning switch off
|
B+
|
|||||
|
5N
|
Lock input (Driver-side door lock-link switch) (without advanced keyless entry and start system)
|
Driver-side door lock-link switch
|
Driver-side door locked
|
1.0 or less
|
• Driver-side door lock-link switch
• Related wiring harnesses
|
|
|
Driver-side door unlocked
|
Wave pattern (See Pattern 2.)
|
|||||
|
Lock input (Driver-side door lock-link switch) (with advanced keyless entry and start system)
|
• Driver-side door lock-link switch
• Keyless control module
|
Driver-side door locked
|
1.0 or less
|
• Driver-side door lock-link switch
• Keyless control module
• Related wiring harnesses
|
||
|
Driver-side door unlocked
|
approx. 4.6
|
|||||
|
5O
|
Rear washer switch signal
|
Rear wiper and washer switch
|
Ignition switch at ON
|
Rear washer switch on
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harnesses
|
|
Rear washer switch off
|
B+
|
|||||
|
5P
|
Key reminder switch signal
|
• Steering lock unit (with advanced keyless system)
• Key reminder switch (with keyless entry system)
|
Key inserted
|
B+
|
• Steering lock unit (with advanced keyless system)
• Key reminder switch (with keyless entry system)
• Related wiring harnesses
|
|
|
Key removed
|
1.0 or less
|
|||||
|
6A
|
Rear turn light (RH) control
|
Rear turn light (RH)
|
Turn switch (RH) on
|
Rear turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Rear turn light (RH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
||||||
|
Other
|
1.0 or less
|
|||||
|
6B
|
Light control
|
Taillight (RH)
|
Light switch at TNS position
|
B+
|
• TNS relay
• BCM
• Related wiring harnesses
|
|
|
Light switch off
|
1.0 or less
|
|||||
|
6C
|
Rear turn light (LH) control
|
Rear turn light (LH)
|
Turn switch (LH) on
|
Rear turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Rear turn light (LH)
• Related wiring harnesses
|
|
Hazard warning switch on
|
||||||
|
Other
|
1.0 or less
|
|||||
|
6D
|
Light control
|
Taillight (LH)
|
Light switch at TNS position
|
B+
|
• TNS relay
• BCM
• Related wiring harnesses
|
|
|
Light switch off
|
1.0 or less
|
|||||
|
6E
|
—
|
—
|
—
|
—
|
—
|
|
|
6F
|
IG1
|
Combined sensor
|
Ignition switch at ON
|
B+
|
• Combined sensor
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
6G
|
CAN_L
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6H
|
CAN_L
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6I
|
CAN_H
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6J
|
CAN_H
|
—
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6K
|
—
|
—
|
—
|
—
|
—
|
|
|
6L*2
|
Inverter power supply
|
Inverter
|
Ignition switch at ACC
|
B+
|
• Inverter
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
6M
|
Front door switch (passenger side) signal
|
Front door switch (passenger side)
|
Front door (passenger side) open
(Front door switch (passenger side) on)
|
1.0 or less
|
• Front door switch (passenger side)
• Related wiring harnesses
|
|
|
Front door (passenger side) closed
(Front door switch (passenger side) off)
|
B+
|
|||||
|
6N
|
—
|
—
|
—
|
—
|
—
|
|
|
6O
|
Front door switch (driver side) input signal
|
Front door switch (driver side)
|
Front door (driver side) open
(Front door switch (driver side) on)
|
1.0 or less
|
• Front door switch (driver side)
• Related wiring harnesses
|
|
|
Front door (driver side) closed
(Front door switch (driver side) off)
|
B+
|
|||||
|
6P*3
|
Front door switch (driver side) output signal
|
Position memory control module
|
Front door (driver side) open
(Front door switch (driver side) on)
|
1.0 or less
|
• Front door switch (driver side)
• Related wiring harnesses
|
|
|
Front door (driver side) closed
(Front door switch (driver side) off)
|
B+
|
|||||
|
6Q
|
Rear door switch (RH) signal
|
Rear door switch (RH)
|
Any rear doors open
(Rear door switch on)
|
1.0 or less
|
• Rear door switches
• Related wiring harnesses
|
|
|
All rear doors closed
(Rear door switch off)
|
B+
|
|||||
|
6R
|
Rear door switch (LH) signal
|
Rear door switch (LH)
|
Any rear doors open
(Rear door switch on)
|
1.0 or less
|
• Rear door switches
• Related wiring harnesses
|
|
|
All rear doors closed
(Rear door switch off)
|
B+
|
|||||
|
6S
|
Liftgate latch switch signal
|
Liftgate latch switch
|
Liftgate is open.
(Liftgate latch switch on)
|
1.0 or less
|
• Liftgate latch switch
• Related wiring harnesses
|
|
|
Liftgate is closed.
(Liftgate latch switch off)
|
B+
|
|||||
|
6T*3
|
Position memory control module communication
|
Position memory control module
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6U*6
|
Lock/unlock input (rear door lock-link switch (LH))
|
Rear door lock-link switch (LH)
|
Rear door (LH) locked
|
Wave pattern (See Pattern 1.)
|
• Rear door lock-link switch (LH)
• Related wiring harnesses
|
|
|
Rear door (LH) unlocked
|
1.0 or less
|
|||||
|
6V
|
Back-up light control
|
Back-up light
|
Ignition switch at ON
|
The selector lever is in the R position
|
B+
|
• Back-up light relay
• Back-up light
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|||||
|
6W*6
|
Lock/unlock input (rear door lock-link switch (RH)
|
Rear door lock-link switch (RH)
|
Rear door (RH) locked
|
Wave pattern (See Pattern 1.)
|
• Rear door lock-link switch (RH)
• Related wiring harnesses
|
|
|
Rear door (RH) unlocked
|
1.0 or less
|
|||||
|
7A
|
Rear wiper control
|
Rear wiper motor
|
Ignition switch at ON
|
Rear wiper moving
|
1.0 or less
|
• Rear wiper motor
• Related wiring harnesses
|
|
Rear wiper stopped
|
B+
|
|||||
|
7B
|
Power supply
|
4WD control module
|
Ignition switch at ON
|
B+
|
• 4WD control module
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
7D
|
Door lock control
|
Door lock actuators
|
Press the lock button on the door lock switch.
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuators
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
7F
|
Rear wiper power supply
|
Rear wiper motor
|
Ignition switch at ON
|
B+
|
• Ignition switch
• Rear wiper motor
• Related wiring harnesses
|
|
|
Ignition switch off
|
1.0 or less
|
|||||
|
7G
|
Door unlock control
|
Door lock actuators
|
Press the lock button on the door lock switch.
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuators
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
7H
|
Position memory control power supply*3
|
Position memory control module
|
Under any condition
|
B+
|
• Position memory control module
• Related wiring harnesses
|
|
|
7I
|
Interior light control
|
Front map light
|
Within 30 min after any door is opened.
|
1.0 or less
|
• Front map light
• Center map light
• Interior light
• Related wiring harnesses
|
|
|
30 min or more after any door is opened.
|
B+
|
|||||
|
All doors closed
|
B+
|
|||||
|
7J
|
Interior light power supply
|
• Front map light
• Interior light
• Cargo compartment light
|
Under any condition
|
B+
|
• Front map light
• Center map light
• Interior light
• Related wiring harnesses
|
|
Generated pulse (reference)
Pattern 1
ac9uuw00003072
|
Pattern 2
ac9uuw00003073
|
Pattern 3
ac9wzw00001453
|
