REAR END PANEL REMOVAL [PANEL REPLACEMENT]


id098008744500

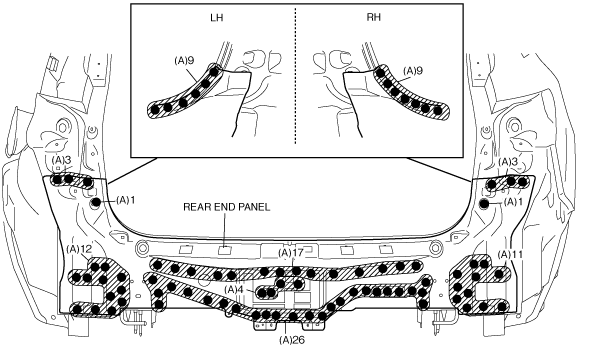

1.  Drill the 96 locations indicated by (A).

2.  Remove the rear end panel component.

3.  Remove the spot weld sealer using a disc grinder.
