UNDERBODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010740500

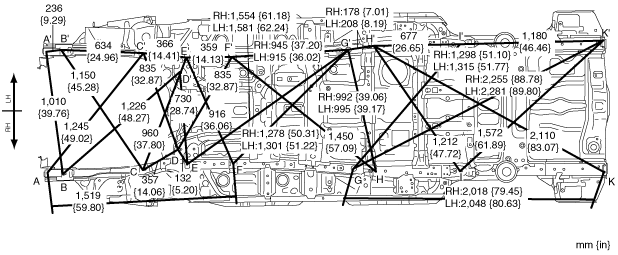

• The following figure is a bottom view.

ac9uub00000001

ac9uub00000002

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front side frame datum hole

φ14 {0.55}

B

Front suspension mounting bolt

M14 {0.55}

C

Front suspension mounting bolt

M14 {0.55}

D

Front suspension mounting bolt

M14 {0.55}

E

Torque box datum hole

φ16.5 {0.65}

F

Front B frame datum hole

φ16.2 {0.64}

G

Front B frame datum hole

RH:φ14 {0.55}

LH:φ10 {0.39}

H

Rear side frame datum hole

φ16 {0.63}

I

Rear suspension mounting bolt

M14 {0.55}

K

Rear side frame datum hole

φ14 {0.55}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front side frame datum hole	φ14 {0.55}
B	Front suspension mounting bolt	M14 {0.55}
C	Front suspension mounting bolt	M14 {0.55}
D	Front suspension mounting bolt	M14 {0.55}
E	Torque box datum hole	φ16.5 {0.65}
F	Front B frame datum hole	φ16.2 {0.64}
G	Front B frame datum hole	RH:φ14 {0.55} LH:φ10 {0.39}
H	Rear side frame datum hole	φ16 {0.63}
I	Rear suspension mounting bolt	M14 {0.55}
K	Rear side frame datum hole	φ14 {0.55}
