FRONT BODY STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]

id098010740800

ac9uub00000007

ac9uub00000008

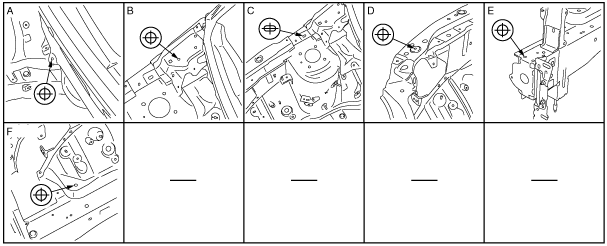

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Dash upper menber datum hole

φ10 {0.39}

B

Bonnet hinge installation hole

φ14 {0.55}

C

Apron reinforcement (upper) datum slot

12 × 18

{0.47 × 0.71}

D

Front fender installation hole

φ7 {0.28}

E

Front side frame (inner) datum hole

φ14 {0.55}

F

Wheel apron panel (front) datum hole

φ16 {0.63}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Dash upper menber datum hole	φ10 {0.39}
B	Bonnet hinge installation hole	φ14 {0.55}
C	Apron reinforcement (upper) datum slot	12 × 18 {0.47 × 0.71}
D	Front fender installation hole	φ7 {0.28}
E	Front side frame (inner) datum hole	φ14 {0.55}
F	Wheel apron panel (front) datum hole	φ16 {0.63}
