CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010743600
ac9uub00000009
|
ac9uub00000010
|
ac9uub00000011
|
|

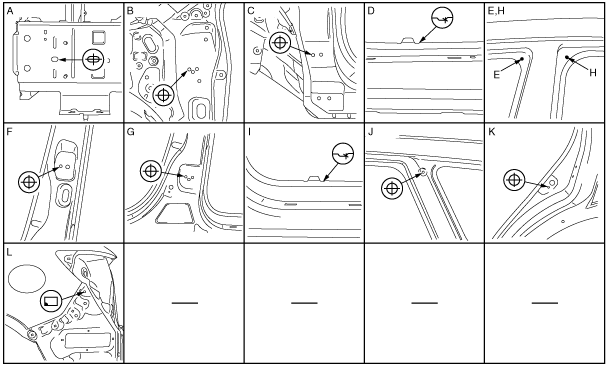

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Front side frame (outer) datum slot
|
12 x 18
{0.47 x 0.71}
|
|
B
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Side frame (outer) notch
|
-
|
|
E
|
Side frame (outer) projection location
|
-
|
|
F
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
G
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
H
|
Side frame (outer) projection location
|
-
|
|
I
|
Side frame (outer) notch
|
-
|
|
J
|
Side frame (outer) datum hole
|
φ8 {0.31}
|
|
K
|
Rear door switch installation hole
|
φ4.5 {0.18}
|
|
L
|
Side frame (outer) square hole
|
9 x 9
{0.35 x 0.35}
|
