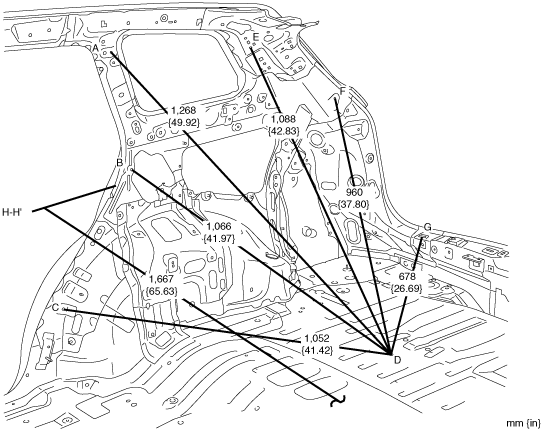

ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]

id098010746200

ac9uub00000016

ac9uub00000017

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

C pillar trim installation hole

φ7 {0.28}

B

C pillar trim installation hole

φ8.6 {0.34}

C

Rear pillar (inner) datum slot

7 x 10

{0.28 x 0.39}

D

Seat installation hole

φ14 {0.55}

E

Rear speaker installation hole

φ6.8 {0.27}

F

Rear pillar (inner) datum hole

φ6 {0.24}

G

Trunk end trim installation square hole

8 x 28

{0.31 x 1.10}

H

Rear door striker installation hole

φ13 {0.51}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	C pillar trim installation hole	φ7 {0.28}
B	C pillar trim installation hole	φ8.6 {0.34}
C	Rear pillar (inner) datum slot	7 x 10 {0.28 x 0.39}
D	Seat installation hole	φ14 {0.55}
E	Rear speaker installation hole	φ6.8 {0.27}
F	Rear pillar (inner) datum hole	φ6 {0.24}
G	Trunk end trim installation square hole	8 x 28 {0.31 x 1.10}
H	Rear door striker installation hole	φ13 {0.51}
