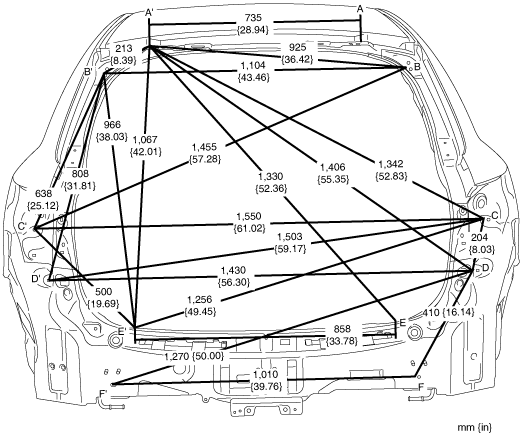

REAR BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010746300

ac9uub00000018

ac9uub00000019

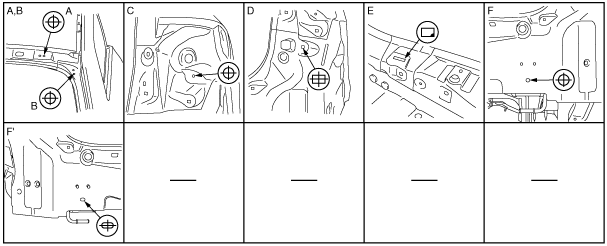

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Liftgate hinge installation hole

φ12 {0.47}

B

Stay damper installation hole

φ7 {0.28}

C

Corner plate datum hole

φ8.5 {0.33}

D

Rear bumper installation square hole

9 x 9

{0.35 x 0.35}

E

Trunk end trim installation square hole

8 x 28

{0.31 x 1.10}

F

Rear end panel datum hole

φ12

F’

Rear end panel datum slot

12 x 18

{0.47 x 0.71}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Liftgate hinge installation hole	φ12 {0.47}
B	Stay damper installation hole	φ7 {0.28}
C	Corner plate datum hole	φ8.5 {0.33}
D	Rear bumper installation square hole	9 x 9 {0.35 x 0.35}
E	Trunk end trim installation square hole	8 x 28 {0.31 x 1.10}
F	Rear end panel datum hole	φ12
F’	Rear end panel datum slot	12 x 18 {0.47 x 0.71}
