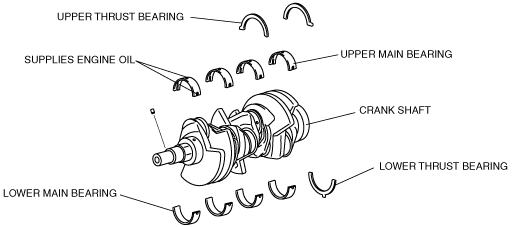

CRANKSHAFT, MAIN BEARING CONSTRUCTION [MZI-3.7]
id0110c5100800
• Consists of two upper thrust bearings and a lower thrust bearing.
• The crankshaft has internal oil passages for supplying oil to each journal.
• The internal surface of the upper main bearing has oil grooves and holes for oil lubrication.
