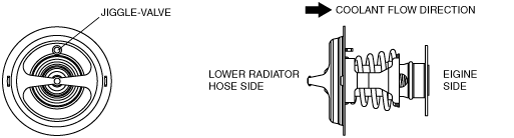

•  A wax-type thermostat with a jiggle-valve has been adopted.

•  Stainless steel has been adopted on the thermostat body for excellent corrosion resistance.

•  When the engine coolant temperature reaches 79.5—83.3 °C {175.2—181.9 °F}, the valve starts opening to allow engine coolant to flow from the radiator stabilizing the engine coolant temperature. The valve fully opens when the engine coolant temperature reaches approx. 94.5 °C {202.1 °F}.
