CRUISE CONTROL SWITCH INSPECTION [MZI-3.7]
id0120c2800100
1. Disconnect the negative battery cable wait for 1 min more.
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
3. Disconnect the steering switch connector. (See STEERING SWITCH REMOVAL/INSTALLATION.)

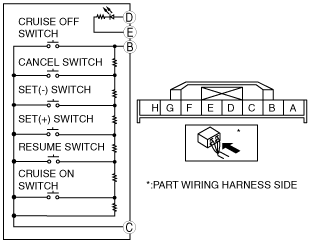

4. Inspect for resistance and continuity between steering switch terminals B—C using a tester.
ac9wzw00002062
|
|
Switch condition |
Resistance (ohm) |
|---|---|
|
Cruise OFF switch held at on
|
Continuity
|
|
CANCEL switch held at on
|
118.8—121.2
|
|
SET (-) switch held at on
|
297.0—303.0
|
|
SET (+) switch held at on
|
594.0—606.0
|
|
RESUME switch held at on
|
1,098.9—1,121.1
|
|
Cruise ON switch held at on
|
2,088.9—2,131.1
|
|
Neutral
|
4,266.9—4,353.1
|
5. Apply battery positive voltage to steering switch terminal D, and connect terminal E to ground.
ac9wzw00002063
|
6. Verify that the LED illuminates.
