REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400801300

1.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2.  Support the rear lower arm using a garage jack.

ampjjw00000888

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

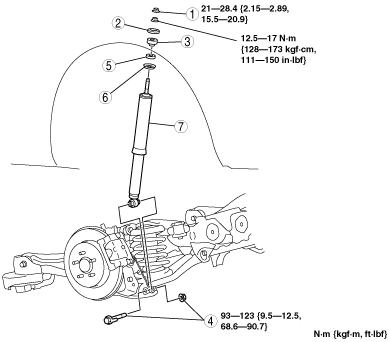

ac9uuw00002796

1	Nut
2	Retainer
3	Upper rubber bushing
4	Bolt and nut (shock absorber lower side)
5	Lower rubber bushing
6	Retainer
7	Rear shock absorber
