OIL SEAL (COMPANION FLANGE) REPLACEMENT

id031400800800

1. Drain the differential oil into a container.

2. Remove the presilencer installation nuts. (Middle pipe side) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3. Disconnect the hanger rubber as shown in the figure.

ac9uuw00002494

4. Suspend the presilencer using a cable.

5. Remove the presilencer insulator.

6. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

7. Remove the locknut using the SST and a pipe.

ac9uuw00001476

8. Support the differential using a jack.

9. After removing the front side of the differential mount, gradually lower the jack and tilt the front side of the differential downward.

ac9uuw00001477

10. Pull the companion flange off using the SST.

ac9uuw00001478

11. Remove the oil seal from the differential carrier using a screwdriver or similar tool.

12. Apply differential oil to the new oil seal lip.

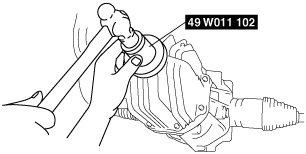

13. Install the new oil seal to the differential carrier using the SST.

ac9uuw00001479

14. Install the companion flange to the drive pinion.

15. Jack up the differential and install the front side of the differential mount.

Tightening torque

63—85 N·m {6.5—8.6 kgf·m, 47—62 ft·lbf}

16. Install the washer and a new locknut.

17. Tighten the locknut to the specified torque using the SST and a pipe.

ac9uuw00001480

Tightening torque

167—226 N·m {17.1—23.0 kgf·m, 124—166 ft·lbf}

18. Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

19. Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT.)
