BRAKE PEDAL INSPECTION [L.H.D.]

id041100801150

Pedal Height Inspection

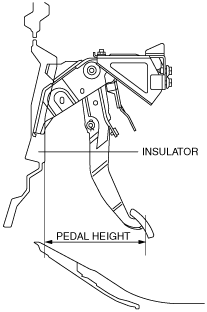

1.  Measure the distance from the center of the upper surface of the pedal pad to the insulator and verify that it is as specified.

ac9wzw00000113

•  If not within the specification, inspect the following items and repair or replace the applicable part if there is any malfunction.

―  Power brake unit installation condition

―  Deformation of or damage to the power brake unit fork

―  Brake pedal installation condition

―  Clevis pin wear

•  If there is no malfunction in the above items, replace the brake pedal.

Pedal Play Inspection

1.  Pump the pedal several times to release the vacuum in the power brake unit.

2.  Gently depress the pedal by hand and measure the pedal play.

•  If not within the specification, inspect the wear of the clevis pin. Replace it if there is any malfunction.

Note

•  If there is no malfunction in the clevis pin, there is a possibility that the power brake unit has some malfunction. Verify that there are no malfunctions, and replace it if necessary.

Pedal-to-floor Clearance Inspection

1.  Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf}.

2.  Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.

ac9uuw00002282

•  If it is less than the specification, inspect for air in the brake line.
