EBD CONTROL OUTLINE


id041800818700

•  Electronic brakeforce distribution (EBD) control uses the dynamic stability control (DSC)/roll stability control (RSC) system to control brake fluid pressure distribution to the rear wheels so that they do not lock-up prior to the front wheels during braking, thereby preventing the loss of handling stability.

Features

•  EBD control has independent control systems for both the front and rear wheels.
•  EBD control constantly and properly distributes brake fluid pressure regardless of vehicle weight.

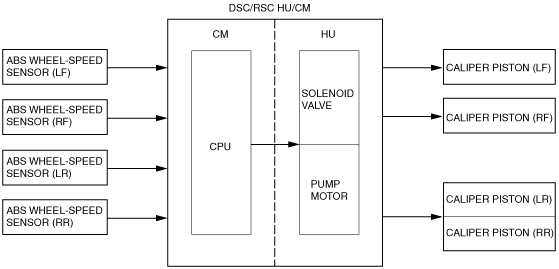

Block Diagram

ac9uun00000518
