TORQUE CONVERTER OUTLINE [AY6A-EL, AY6AX-EL]
id0517k3223100

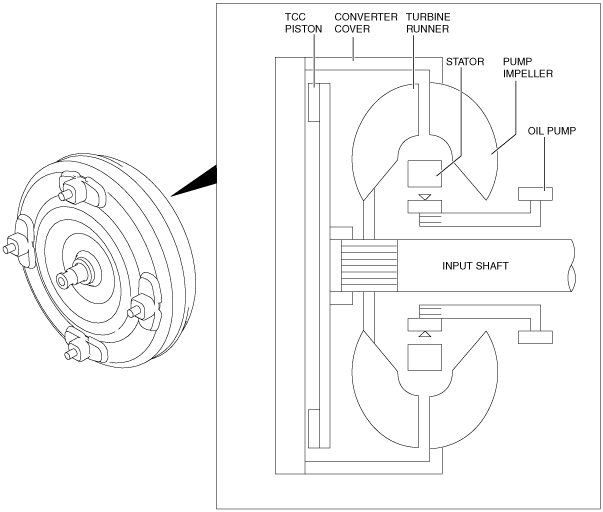

• The torque converter is consists of the converter cover, pump impeller, turbine runner, stator, one-way clutch, and TCC. The torque converter transmits and amplifies torque by means of the ATF inside it. The TCC is a direct coupling between the engine and automatic transaxle that is intended to improve fuel efficiency.
