COUPLER COMPONENT (TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR) OUTLINE [AY6A-EL, AY6AX-EL]

id0517k3224600

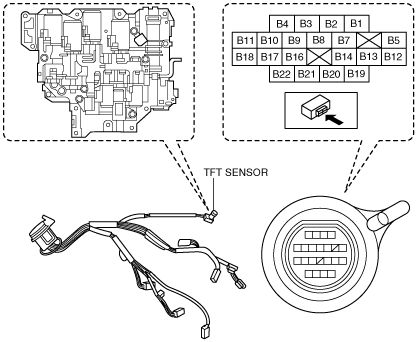

•  The coupler component are installed on the transaxle case as the grouped connectors of the TFT sensor, input/turbine speed sensor, VSS and solenoids.
•  The TFT sensor, which is integrated with the coupler component, is installed on the front valve body. It directly detects the TFT within the hydraulic pressure control circuit and transmits a signal based on that temperature to the TCM. In response to changes in oil temperature, the TCM controls gear shifting for smooth shifting across a wide range of temperatures.
ac9uun00000818

Terminal No.

Signal
B1
Line pressure control solenoid (–)
B2
Shift solenoid B
B3
Line pressure control solenoid (+)
B4
TCC control solenoid (–)
B5
Shift solenoid A
B6
—
B7
TFT sensor (–)
B8
TFT sensor (+)
B9
TCC control solenoid (+)
B10
Shift solenoid C (–)
B11
Shift solenoid C (+)
B12
Input/turbine speed sensor (+)
B13
Input/turbine speed sensor (–)
B14
Shift solenoid E (+)
B15
—
B16
Shift solenoid F (–)
B17
Shift solenoid D (+)
B18
Shift solenoid D (–)
B19
VSS (+)
B20
VSS (–)
B21
Shift solenoid F (+)
B22
Shift solenoid E (–)
