REAR A/C UNIT REMOVAL/INSTALLATION

• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

7. Jack up the vehicle.

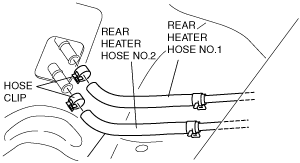

8. Remove the hose clip.

ac9uuw00000779

9. Remove the rear heater hose No.1 and No.2.

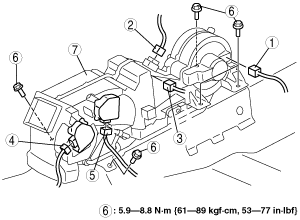

10. Remove in the order indicated in the table.

ac9uuw00002816

1

Rear blower motor connector

2

Rear power MOS FET connector

3

Rear evaporator temperature sensor connector

4

Rear airflow mode actuator connector

5

Rear air mix actuator connector

6

Bolt

7

Rear A/C unit

11. Install in the reverse order of removal. (See Rear A/C Unit Installation Note.)

12. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Rear A/C Unit Installation Note

1. When installing a new rear A/C unit or rear evaporator, add a supplemental amount of DENSO OIL8 compressor oil into the refrigerant cycle.

Supplemental amount (approx. quantity)

40 ml {40 cc, 1.4 fl oz}

1	Rear blower motor connector
2	Rear power MOS FET connector
3	Rear evaporator temperature sensor connector
4	Rear airflow mode actuator connector
5	Rear air mix actuator connector
6	Bolt
7	Rear A/C unit
