REAR AIRFLOW MODE ACTUATOR INSPECTION

id074000804700

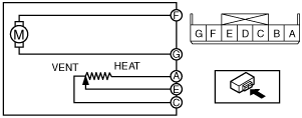

1.  Connect battery positive voltage to rear airflow mode actuator terminal F (or G), connect terminal G (or F) to ground, and then verify that the rear airflow mode actuator operates as shown in the table.

•  If the operation condition is not normal, replace the rear airflow mode actuator.

ac9wzw00002810

Terminal		Rear airflow mode actuator operation
F	G
B+	Ground	VENT → HEAT
Ground	B+	HEAT → VENT

ac9uuw00001024

2.  Verify that the resistance between terminals A and E, and E and C matches the rear airflow mode actuator operation as shown in the graph.

am8rrw00000829

•  If the operation condition and resistance are not normal, replace the rear airflow mode actuator.
