AIR BAG SYSTEM LOCATION INDEX

id081000805300

R.H.D.

ac9wzw00002955

1	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
2	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.) (See CLOCK SPRING INSPECTION.) (See CLOCK SPRING ADJUSTMENT.)
3	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
4	Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
5	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
6	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)
7	Side air bag sensor No. 1 (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION.)
8	Side air bag sensor No. 2 (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)
9	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)
10	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
11	Pre-tensioner seat belt (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)

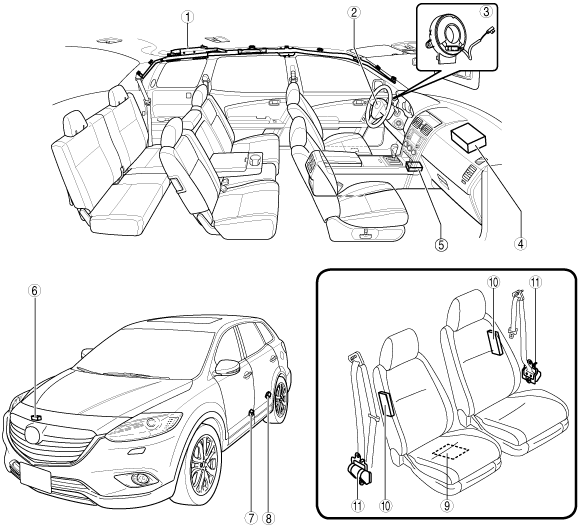

L.H.D.

ac9wzw00002956

1	Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
2	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
3	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.) (See CLOCK SPRING INSPECTION.) (See CLOCK SPRING ADJUSTMENT.)
4	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
5	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
6	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)
7	Side air bag sensor No. 1 (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION.)
8	Side air bag sensor No. 2 (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)
9	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)
10	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
11	Pre-tensioner seat belt (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
