FOREWORD [CAR-NAVIGATION SYSTEM]

id0903e8844500

Troubleshooting Index

No.	Symptom	Description
1	NO.1 CAR-NAVIGATION SYSTEM DOES NOT START OPERATION [CAR-NAVIGATION SYSTEM]	•  Even if the NAVI mode is selected, the car navigation system screen does not display
2	NO.2 CAR-NAVIGATION SYSTEM DOES NOT OPERATION [CAR-NAVIGATION SYSTEM]	•  Even if the map screen is touched, the car navigation system cannot be operated
3	NO.3 VEHICLE POSITION DEVIATES FROM THE ROUTE MAP [CAR-NAVIGATION SYSTEM]	•  The vehicle position on the map screen deviates from the actual vehicle position.
4	NO.4 NO VOICE NAVIGATION [CAR-NAVIGATION SYSTEM]	•  Even if the route guidance mode is initiated, there is no voice guidance
5	NO.5 DISPLAY SCREEN DOES NOT CHANGE TO THE NIGHT MODE [CAR-NAVIGATION SYSTEM]	•  Does not switch to the night screen even though the light switch is in the TNS position.

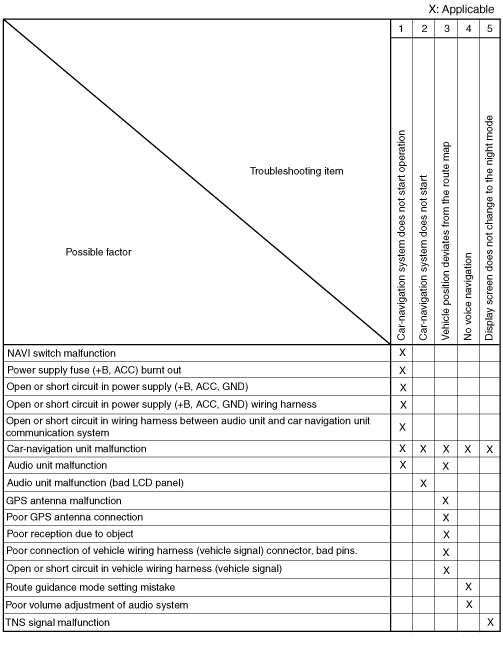

Quick Diagnostic Chart

ac9wzw00002918
