FOREWORD [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

id0903h5844600

Troubleshooting Index

No.	Symptom	Possible DTC
		Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
1	No.1 HANDS-FREE TELEPHONE SYSTEM DOES NOT RECEIVE/TRANSMIT CALLS, DOES NOT CONNECT [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]	B116A:12, B116A:13, B116A:44	26:Er82, 26:Er84, 26:Er86
2	No.2 CALLER'S VOICE VOLUME TOO LOW, OR NOISE INTERRUPTS CALL [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]	—	26:Er81
3	No.3 ADDRESSEE'S VOICE VOLUME TOO LOW, OR NOISE INTERRUPTS CALL [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]	—	26:Er81

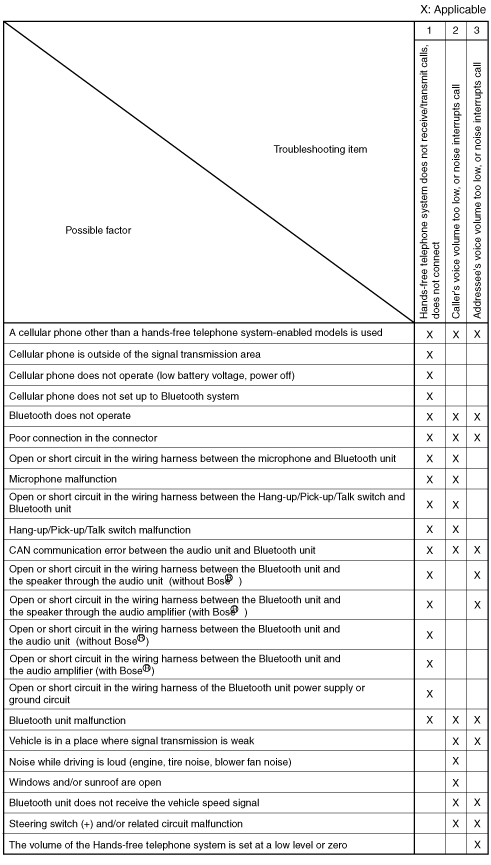

Quick Diagnostic Chart

ac9wzw00002919
