REAR DOOR CHECKER REMOVAL/INSTALLATION

id091100520700

1.  Fully close the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

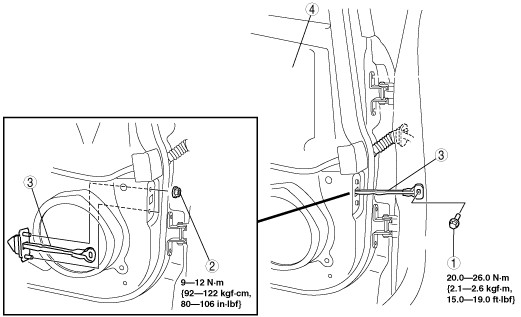

4.  Remove in the order indicated in the table.

ac9wzw00002484

1	Bolt A
2	Bolt B
3	Rear door checker
4	Rear door

5.  Install in the reverse order of removal.

6.  Adjust the front door. (See DOOR ADJUSTMENT.)
