SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY
id091300802600
LH
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
ac9wzw00002479
|
|
1
|
Recliner lever
|
|
2
|
Lift lever
|
|
3
|
Hinge cover
|
|
4
|
Knuckle upper cover
|
|
5
|
Seat back board
|
|
6
|
Armrest bracket
|
|
7
|
Armrest
|
|
8
|
Seat back trim
|
|
9
|
Seat back pad
|
|
10
|
Headrest
|
|
11
|
Pole guide
|
|
12
|
Seat back frame
|
|
13
|
Seat under bracket cover
|
|
14
|
Second-row buckle
|
|
15
|
Slide adjuster cover
|
|
16
|
Side cover
|
|
17
|
Seat cushion trim
|
|
18
|
Seat cushion pad
|
|
19
|
Seat cushion frame
|
|
20
|
Slide adjuster
|

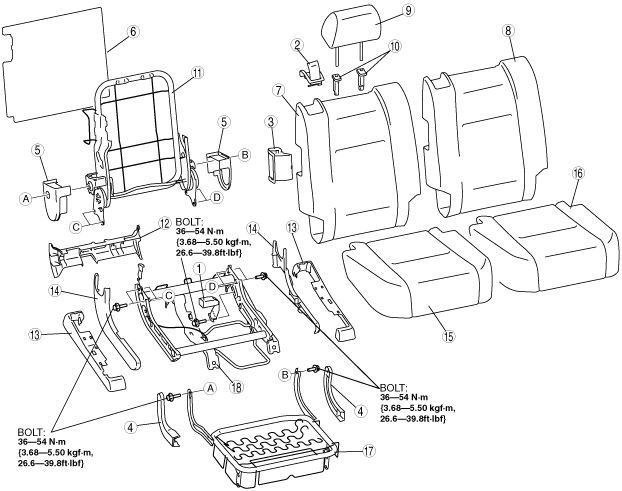

RH
ac9wzw00002480
|
|
1
|
Second-row buckle
|
|
2
|
Recliner lever
|
|
3
|
Lift lever
|
|
4
|
Hinge cover
|
|
5
|
Knuckle upper cover
|
|
6
|
Seat back board
|
|
7
|
Seat back trim
|
|
8
|
Seat back pad
|
|
9
|
Headrest
|
|
10
|
Pole guide
|
|
11
|
Seat back frame
|
|
12
|
Seat under bracket cover
|
|
13
|
Slide adjuster cover
|
|
14
|
Side cover
|
|
15
|
Seat cushion trim
|
|
16
|
Seat cushion pad
|
|
17
|
Seat cushion frame
|
|
18
|
Slide adjuster
|
