THIRD-ROW SEAT DISASSEMBLY/ASSEMBLY
id091300802800

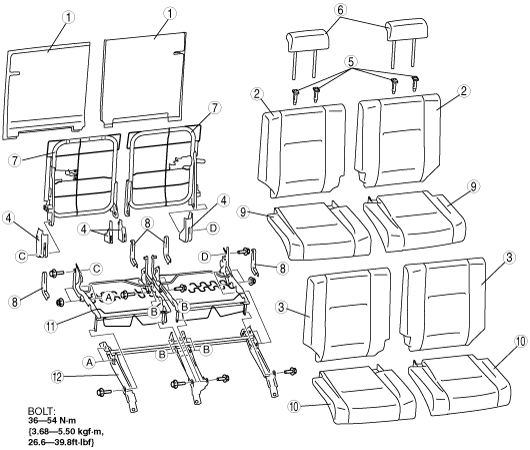

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
ac9wzw00002483
|
|
1
|
Seat back board
|
|
2
|
Seat back trim
|
|
3
|
Seat back pad
|
|
4
|
Seat back frame
|
|
5
|
Pole guide
|
|
6
|
Headrest
|
|
7
|
Seat back frame
|
|
8
|
Hinge cover
|
|
9
|
Seat cushion trim
|
|
10
|
Seat cushion pad
|
|
11
|
Seat cushion frame
|
|
12
|
Seat under bracket
|
