FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400800600

1.  The following actuators and switches are integrated with the front door latch and lock actuator. Inspect the front door latch and lock actuator according to each inspection procedure for the following items.

•  Front door lock actuator (See FRONT DOOR LOCK ACTUATOR INSPECTION.)

•  Front door key cylinder switch (Driver side) (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)

•  Door lock-link switch (See DOOR LOCK-LINK SWITCH INSPECTION.)

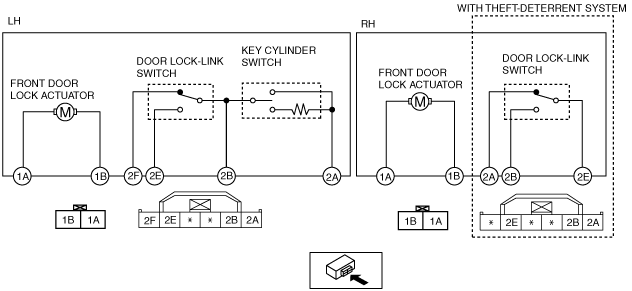

L.H.D.

ac9uuw00001415

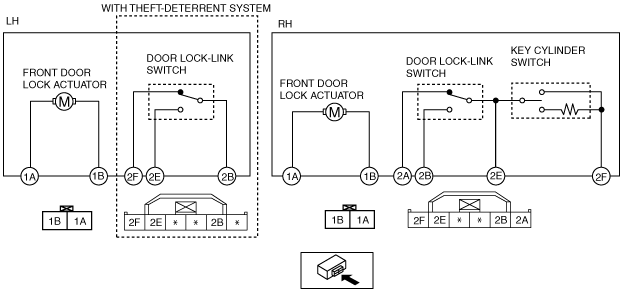

R.H.D.

ac9wzw00001071
