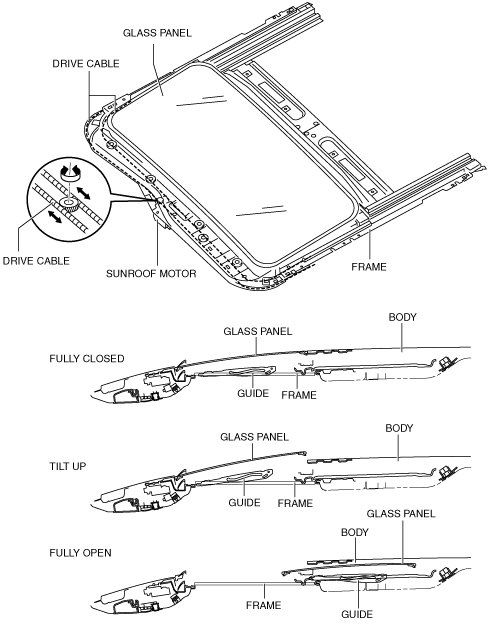

•  Consists of a glass panel, frame and sunroof motor.

•  The drive cables inside the frame are engaged with the sunroof motor drive gear so that when the motor rotates the drive cables also move.

•  The guides are fixed to the glass panel so that the panel is moved by the drive cables sliding the guides.
