HEADLIGHT AUTO LEVELING SYSTEM OPERATION

id091800104200

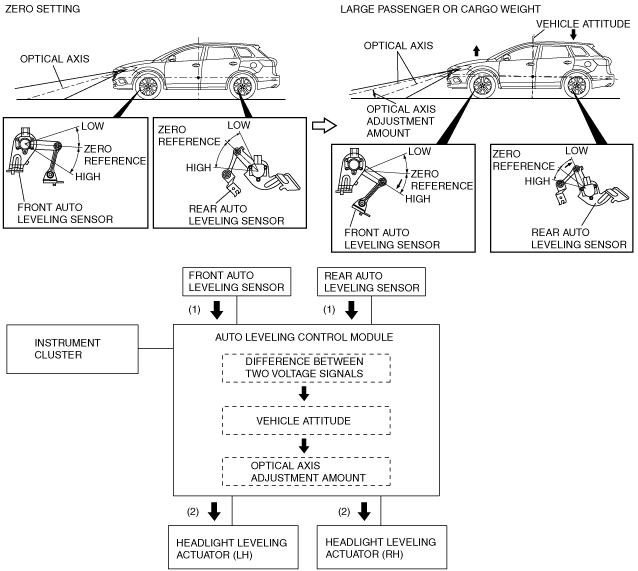

Varying Passenger and Cargo Conditions Operation

1.  According to the fluctuation of the suspension, the auto leveling sensors installed in the front and rear of the vehicle send a signal to the auto leveling control module.

2.  When a difference between two of the signals input from the auto leveling sensors is detected, the auto leveling control module verifies the vehicle attitude, then calculates the amount of optical axis adjustment. The auto leveling control module compares the actual and required positions of the reflector, then inputs a command signal to the headlight leveling actuator.

ac9wzn00000736

Operation When Driving

1.  1. If the auto leveling control module detects the vehicle is moving at a constant vehicle speed of 2 km/h or more for 12 s while the headlights are on, the average value of the vehicle attitude during the period is calculated and the optical axis is adjusted.
