AUDIO UNIT CONSTRUCTION/OPERATION
id092000101600

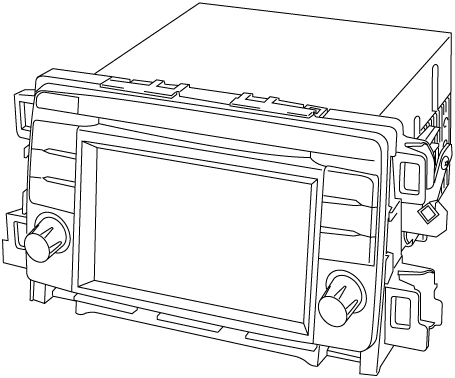

Construction
ac5jjn00000376
|
Terminal Layout and Signal
Audio unit
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Front door speaker LH (+)
|
|
1B
|
B+
|
|
|
1C
|
Front door speaker LH (-)
|
|
|
1D
|
Front door speaker RH (+)
|
|
|
1E
|
TNS (+)
|
|
|
1F
|
Front door speaker RH (-)
|
|
|
1G
|
TNS (–)
|
|
|
1H
|
Steering switch 3
|
|
|
1I
|
Vehicle speed signal
|
|
|
1J
|
AMP control *1
|
|
|
1K
|
Parking brake signal
|
|
|
1L
|
—
|
|
|
1M
|
R position signal
|
|
|
1N
|
Steering switch 1
|
|
|
1O
|
CAN_H
|
|
|
1P
|
Steering switch 2
|
|
|
1Q
|
CAN_L
|
|
|
1R
|
ACC
|
|
|
1S
|
Rear door speaker LH (+)
|
|
|
1T
|
AudioPilot®2 *1
|
|
|
1U
|
Rear door speaker LH (-)
|
|
|
1V
|
Rear door speaker RH (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Rear door speaker RH (-)
|
|
 |
2A
|
Bluetooth signal input RH (+)
|
|
2B
|
Bluetooth signal input RH (-)
|
|
|
2C
|
Bluetooth signal input LH (+)
|
|
|
2D
|
Bluetooth signal input LH (-)
|
|
|
2E
|
Audio signal input RH (+)
|
|
|
2F
|
Audio signal input RH (-)
|
|
|
2G
|
Audio signal input LH (+)
|
|
|
2H
|
Audio signal input LH (-)
|
|
|
2I
|
HS-CAN (+)
|
|
|
2J
|
HS-CAN (-)
|
|
|
2L
|
Microphone voice input (+)
|
|
|
2N
|
Microphone voice input (-)
|
|
|
2P
|
Microphone ground
|
|
|
2R
|
Microphone power supply
|
|
|
2T
|
Microphone detect
|
|
|
2V
|
—
|
|
|
2W
|
AUX detection
|
|
|
2X
|
AUX signal LH, RH (-)
|
|
|
2Y
|
AUX signal RH (+)
|
|
|
2Z
|
AUX signal LH (+)
|
|
|
2AA
|
—
|
|
|
2AB
|
—
|
|
|
2AC
|
—
|
|
|
2AD
|
—
|
|
 |
3A
|
Rear mount camera power supply
|
|
3B
|
Rear mount camera power supply ground
|
|
|
3C
|
Rear mount camera image ground
|
|
|
3D
|
Rear mount camera power signal input
|
|
 |
4UA
|
USB power ground
|
|
4UB
|
USB data (+)
|
|
|
4UC
|
USB power supply
|
|
|
4UD
|
USB data (-)
|
|
 |
5A
|
USB power supply
|
|
5B
|
USB data (+)
|
|
|
5C
|
USB power ground
|
|
|
5D
|
USB data (-)
|
|
Antenna feeder connector
|
Terminal |
Signal |
|
|---|---|---|
 |
6A
|
ANT CONT
|
|
6B
|
Antenna
|
|
Switch location
With RDS (radio data system)
ac9wzn00000903
|
|
No. |
Switch name |
Function |
|---|---|---|
|
1
|
EJECT button
|
Ejects CD.
|
|
2
|
AUDIO button
|
Switches to audio screen.
|
|
3
|
PHONE button
|
Switches to Bluetooth dial screen.
|
|
4
|
NAV button
|
Switches to navigation screen.
|
|
5
|
POWER/VOLUME button
|
Audio power on/off and volume adjustment are possible.
|
|
6
|
SETUP button
|
Switches to setting screen.
|
|
7
|
SEEK/TRACK button(up)
|
• Fast-forwards current tracks or radio stations.
• Changes CD tracks or switches radio stations.
|
|
8
|
SEEK/TRACK button(down)
|
• Reverses current tracks or radio stations.
• Changes CD tracks or switches radio stations.
|
|
9
|
TUNE/FILE AUDIO CONT button
|
• Changes CD tracks or switches radio stations.
• Audio sound quality can be adjusted.
|
Without RDS (radio data system)
ac9wzn00000904
|
|
No. |
Switch name |
Function |
|---|---|---|
|
1
|
EJECT button
|
Ejects CD.
|
|
2
|
SETUP button
|
Switches to setting screen.
|
|
3
|
SEEK/TRACK button(up)
|
• Fast-forwards current tracks or radio stations.
• Changes CD tracks or switches radio stations.
|
|
4
|
SEEK/TRACK button(down)
|
• Reverses current tracks or radio stations.
• Changes CD tracks or switches radio stations.
|
|
5
|
TUNE/FILE AUDIO CONT button
|
• Changes CD tracks or switches radio stations.
• Audio sound quality can be adjusted.
|
|
6
|
AUDIO button
|
Switches to audio screen.
|
|
7
|
PHONE button
|
Switches to Bluetooth dial screen.
|
|
8
|
NAV button
|
Switches to navigation screen.
|
|
9
|
POWER/VOLUME button
|
Audio power on/off and volume adjustment are possible.
|
