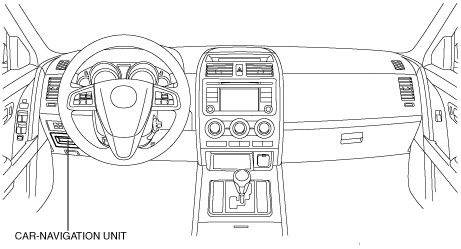

CAR-NAVIGATION UNIT CONSTRUCTION
id092000102300
ac9wzn00000909
|
Terminal layout and signal
Antenna feeder connector
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Ground
|
|
1B
|
Ground
|
|
|
1C
|
Ground
|
|
|
1D
|
Ground
|
|
|
1E
|
—
|
|
|
1F
|
—
|
|
|
1G
|
ACC
|
|
|
1H
|
B+
|
|
 |
2A
|
USB power supply
|
|
2B
|
USB data (+)
|
|
|
2C
|
USB power ground
|
|
|
2D
|
USB data (+)
|
|
GPS antenna
|
Terminal |
Signal |
|
|---|---|---|
 |
3A
|
—
|
|
3B
|
GPS
|
|
