AUDIO UNIT REMOVAL/INSTALLATION

id092000805500

Caution

•  When installing the Audio unit, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

(2)  Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

(3)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

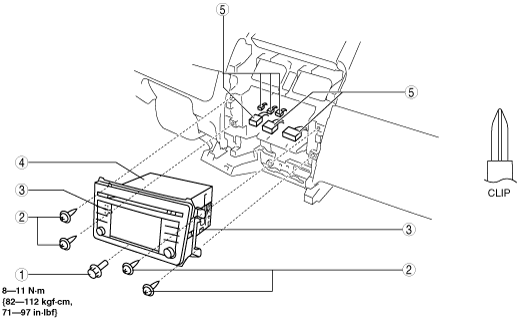

3.  Remove in the order indicated in the table.

ac9wzw00002757

1	Bolt
2	Screw
3	Clip
4	Audio unit
5	Connector

4.  Install in the reverse order of removal.
