CAR-NAVIGATION UNIT DISASSEMBLY/ASSEMBLY

id092000816500

Caution

•  When disassembling the car-navigation unit, it could get scratched if it is placed directly on the ground. When disassembling the car-navigation unit, spread a soft cloth underneath to perform the work.

1.  Remove the screws.

ac9wzw00002850

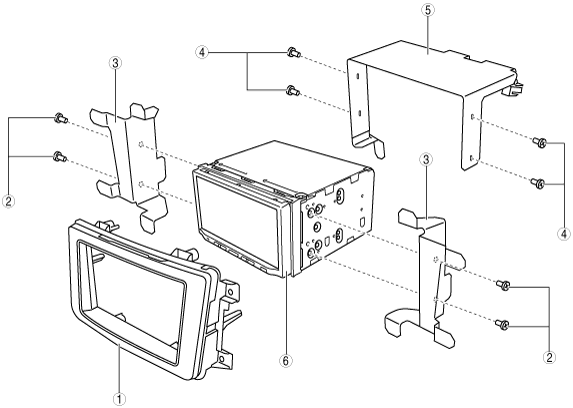

2.  Disassemble in the order indicated in the table.

ac9wzw00002851

1	Car-navigation unit panel
2	Screw A
3	Bracket A
4	Screw B
5	Bracket B
6	Car-navigation unit
