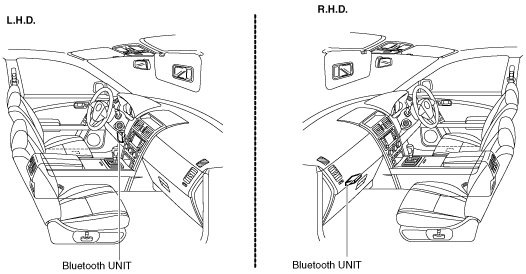

Bluetooth UNIT CONSTRUCTION
id092000843100
ac9wzn00000917
|
Terminal Layout and Signal
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Mic input (+)
|
|
1B
|
Mic input (-)
|
|
|
1C
|
—
|
|
|
1D
|
—
|
|
|
1E
|
—
|
|
|
1F
|
—
|
|
|
1G
|
—
|
|
|
1H
|
—
|
|
|
1I
|
Audio output LH (+)
|
|
|
1J
|
Audio output LH (-)
|
|
|
1K
|
—
|
|
|
1L
|
Audio output shield
|
|
|
1M
|
Audio output RH (+)
|
|
|
1N
|
Audio output RH (-)
|
|
|
1O
|
—
|
|
|
1P
|
—
|
|
|
1Q
|
—
|
|
|
1R
|
—
|
|
|
1S
|
CAN_H
|
|
|
1T
|
CAN_L
|
|
|
1U
|
—
|
|
|
1V
|
—
|
|
|
1W
|
—
|
|
|
1X
|
GND
|
|
|
1Y
|
—
|
|
|
1Z
|
—
|
|
|
1AA
|
B+
|
|
|
1AB
|
ACC
|
|
 |
2UA
|
USB power ground
|
|
2UB
|
USB data (+)
|
|
|
2UC
|
USB data (-)
|
|
|
2UD
|
USB power supply
|
|
 |
3A
|
GPS
|
|
3B
|
GND
|
|
