POWER SYSTEMS STRUCTURAL VIEW
id092100100200
Power Systems Location
L.H.D.
ac9wzn00000762
|
R.H.D.
ac9wzn00000763
|
Relay Location
Without discharge headlight system
ac9wzw00002550
|
|
1
|
Main relay No.1
|
|
2
|
Fuel pump relay
|
|
3
|
Front blower relay
|
|
4
|
Rear window defroster relay
|
|
5
|
Starter relay
|
|
6
|
Back-up light relay
|
|
7
|
A/C relay
|
|
8
|
TNS relay
|
|
9
|
Rear blower relay
|
|
10
|
Horn relay
|
|
11
|
Rear fog light relay
|
|
12
|
ACC relay
|
|
13
|
Headlight relay (HI)
|
|
14
|
Main relay No.2
|
|
15
|
Headlight relay (LO)
|
|
16
|
Cooling fan relay No.1
|
|
17
|
Cooling fan relay No.2
|
|
18
|
Front fog light relay
|

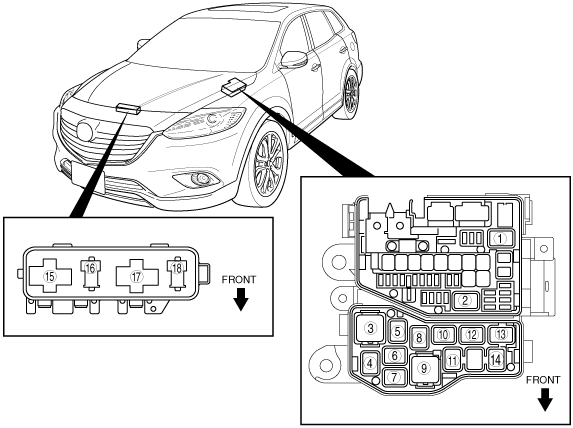

With discharge headlight system
ac9wzw00002551
|
|
1
|
Main relay No.1
|
|
2
|
Fuel pump relay
|
|
3
|
Front blower relay
|
|
4
|
Rear window defroster relay
|
|
5
|
Starter relay
|
|
6
|
Back-up light relay
|
|
7
|
A/C relay
|
|
8
|
TNS relay
|
|
9
|
Rear blower relay
|
|
10
|
Horn relay
|
|
11
|
Rear fog light relay
|
|
12
|
ACC relay
|
|
13
|
Main relay No.2
|
|
14
|
Headlight relay (LH)
|
|
15
|
Cooling fan relay No.1
|
|
16
|
Headlight relay (RH)
|
|
17
|
Cooling fan relay No.2
|
|
18
|
Front fog light relay
|
