BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION

id092200810400

1.  Disconnect the negative battery cable.

2.  Remove the BSM OFF switch. (See BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION.)

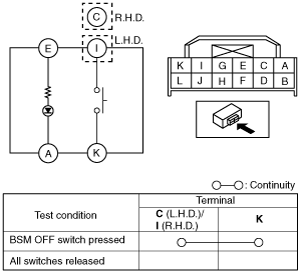

3.  Verify that the continuity is as indicated in the table.

ac9wzw00002683

•  If not as indicated in the table, replace the cluster switch.

4.  Apply battery positive voltage to BSM OFF switch terminal E, and connect terminal A to ground.

ac9wzw00002684

5.  Verify that the LED illuminates.

•  If there is any malfunction, replace the cluster switch.
