CONTROLLER AREA NETWORK (CAN) SYSTEM WIRING DIAGRAM

id094000103400

HS-CAN

L.H.D.

ac9wzn00000816

R.H.D.

ac9wzn00000818

MS-CAN

L.H.D.

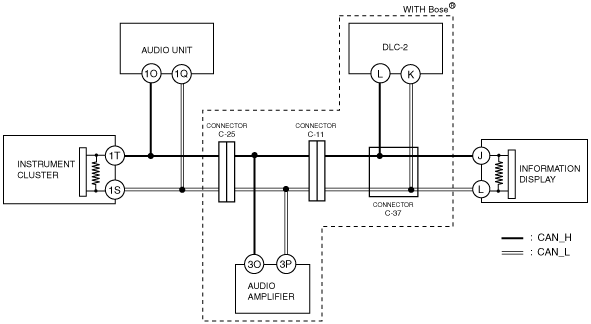

Type A (Blind spot monitoring (BSM) control module connector 8-pin type)

ac9wzn00000817

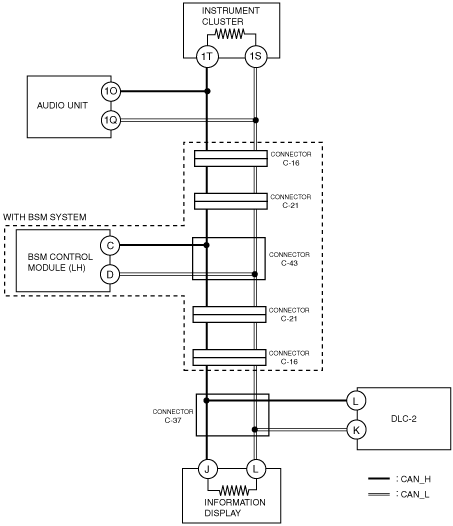

Type B (Blind spot monitoring (BSM) control module connector 10-pin type (Without Bose^®))

ac9wzn00001009

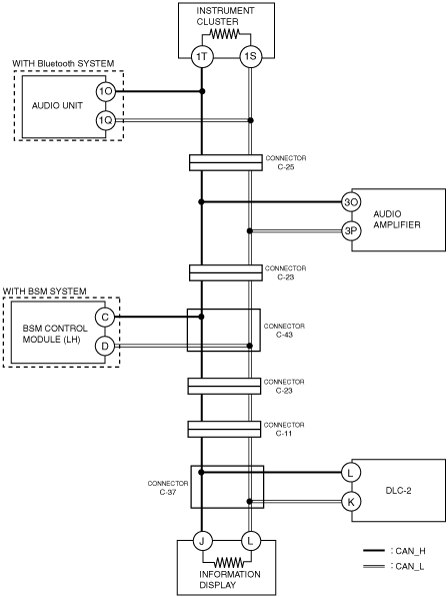

Type B (Blind spot monitoring (BSM) control module connector 10-pin type (With Bose^®))

ac9wzn00001008

R.H.D.

Type A (Blind spot monitoring (BSM) control module connector 8-pin type)

ac9wzn00000819

Type B (Blind spot monitoring (BSM) control module connector 10-pin type)

ac9wzn00001010
