ULTRA HIGH-TENSION STEEL [CONSTRUCTION]
id098007745600
Characteristics of Ultra High-Tensile Steel Plates
• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.
• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.
• Enhanced shock absorption has improved the safety.
Range of Use and Cautions for Service
• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.
• When drilling welded parts, use a well-ground drill bit.
• After welding, inspect the weld strength. If adhesion is poor, perform CO2 arc welding (plug welding).

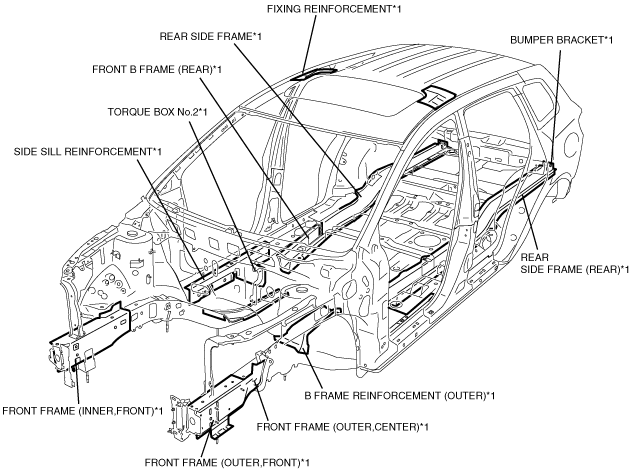

*1 :Indicates tensile strength of 590 MPa {6016 kgf/cm2, 85572 psi}.
*2 :Indicates tensile strength of 780 MPa {7954 kgf/cm2, 113130 psi}.
