FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010740600

ac9uub00000004

ampjjb00000006

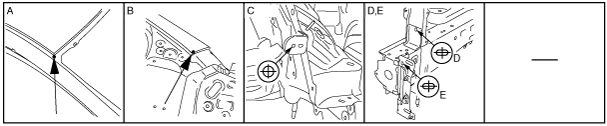

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Roof seamless location

-

B

Front pillar projection location

-

C

Shroud side stay datum hole

φ7 {0.28}

D

Shroud side panel datum slot

10 × 14

{0.39 × 0.55}

E

Bumper bracket datum slot

10 × 14

{0.39 ×0.55}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Roof seamless location	-
B	Front pillar projection location	-
C	Shroud side stay datum hole	φ7 {0.28}
D	Shroud side panel datum slot	10 × 14 {0.39 × 0.55}
E	Bumper bracket datum slot	10 × 14 {0.39 ×0.55}
