CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

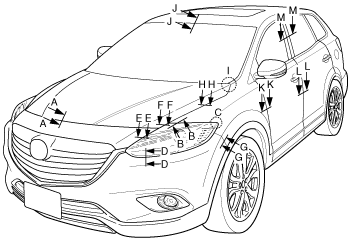

FRONT VIEW

ac9wzb00000011

ac9wzb00000012

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in}

Side by side difference (mm) {in}

A

1

5.20 {0.20}

7.40 {0.29}

3.00 {0.12}

2.00 {0.08}

2

2.20 {0.087}

2.50 {0.098}

-2.50 {-0.098}

-

B

3

2.50 {0.098}

4.00 {0.20}

1.00 {0.04}

-

4

2.40 {0.094}

3.80 {0.15}

1.00 {0.039}

-

C

5

1.80 {0.071}

3.20 {0.13}

0.60 {0.02}

-

6

0.04 {0.002}

1.44 {0.056}

-1.36 {-0.053}

-

D

7

1.80 {0.071}

3.30 {0.13}

0.30 {0.10}

2.00 {0.08}

E

8

4.30 {0.17}

6.80 {0.26}

1.80 {0.08}

2.00 {0.08}

F

9

4.60 {0.18}

6.60 {0.26}

2.60 {0.10}

1.50 {0.059}

G

10

0.00 {0.00}

1.00 {0.04}

-

-

11

0.40 {0.02}

1.10 {0.04}

-0.30 {-0.02}

-

H

12

4.30 {0.17}

5.50 {0.22}

3.10 {0.12}

-

13

4.00 {0.16}

5.20 {0.21}

2.80 {0.11}

1.00 {0.04}

I

14

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

15

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

16

0.00 {0.00}

1.50 {0.06}

-1.50 {-0.06}

-

17

0.00 {0.00}

1.50 {0.06}

-1.50 {-0.06}

-

18

2.00 {0.08}

3.20 {0.13}

0.80 {0.03}

1.20 {0.05}

J

19

4.40 {0.17}

6.10 {0.24}

2.70 {0.11}

2.30 {0.09}

20

0.60 {0.02}

2.60 {0.10}

-1.40 {-0.06}

-

K

21

3.50 {0.14}

4.50 {0.18}

2.50 {0.10}

1.00 {0.04}

22

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

L

23

3.50 {0.14}

4.50 {0.18}

2.50 {0.10}

1.00 {0.04}

24

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

M

25

4.50 {0.18}

6.00 {0.24}

3.00 {0.12}

1.50 {0.06}

26

0.00 {0.00}

1.50 {0.06}

-

-

No.	Measurement part	Standard values (mm) {in}	Maximum values (mm) {in}	Minimum values (mm) {in}	Side by side difference (mm) {in}
A	1	5.20 {0.20}	7.40 {0.29}	3.00 {0.12}	2.00 {0.08}
2	2.20 {0.087}	2.50 {0.098}	-2.50 {-0.098}	-
B	3	2.50 {0.098}	4.00 {0.20}	1.00 {0.04}	-
4	2.40 {0.094}	3.80 {0.15}	1.00 {0.039}	-
C	5	1.80 {0.071}	3.20 {0.13}	0.60 {0.02}	-
6	0.04 {0.002}	1.44 {0.056}	-1.36 {-0.053}	-
D	7	1.80 {0.071}	3.30 {0.13}	0.30 {0.10}	2.00 {0.08}
E	8	4.30 {0.17}	6.80 {0.26}	1.80 {0.08}	2.00 {0.08}
F	9	4.60 {0.18}	6.60 {0.26}	2.60 {0.10}	1.50 {0.059}
G	10	0.00 {0.00}	1.00 {0.04}	-	-
11	0.40 {0.02}	1.10 {0.04}	-0.30 {-0.02}	-
H	12	4.30 {0.17}	5.50 {0.22}	3.10 {0.12}	-
13	4.00 {0.16}	5.20 {0.21}	2.80 {0.11}	1.00 {0.04}
I	14	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
15	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
16	0.00 {0.00}	1.50 {0.06}	-1.50 {-0.06}	-
17	0.00 {0.00}	1.50 {0.06}	-1.50 {-0.06}	-
18	2.00 {0.08}	3.20 {0.13}	0.80 {0.03}	1.20 {0.05}
J	19	4.40 {0.17}	6.10 {0.24}	2.70 {0.11}	2.30 {0.09}
20	0.60 {0.02}	2.60 {0.10}	-1.40 {-0.06}	-
K	21	3.50 {0.14}	4.50 {0.18}	2.50 {0.10}	1.00 {0.04}
22	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
L	23	3.50 {0.14}	4.50 {0.18}	2.50 {0.10}	1.00 {0.04}
24	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
M	25	4.50 {0.18}	6.00 {0.24}	3.00 {0.12}	1.50 {0.06}
26	0.00 {0.00}	1.50 {0.06}	-	-

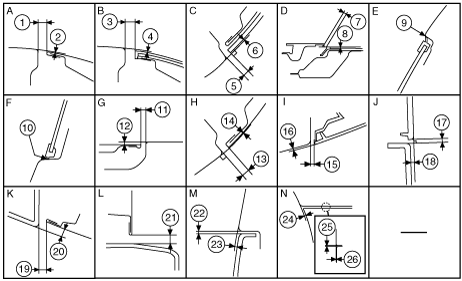

REAR VIEW

ac9wzb00000013

acxjjb00000102

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in}

Side by side difference (mm) {in}

A

1

6.00 {0.24}

7.00 {0.28}

5.00 {0.20}

1.20 {0.05}

2

-1.00 {-0.04}

0.00 {0.00}

-2.00 {0.08}

-

B

3

6.00 {0.24}

7.00 {0.28}

5.00 {0.20}

-

4

1.00 {0.04}

2.00 {0.08}

0.00 {0.00}

-

C

5

4.30 {0.17}

6.80 {0.27}

1.80 {0.07}

2.00 {0.08}

6

2.50 {0.10}

5.10 {0.20}

-0.10 {-0.004}

-

D

7

4.90 {0.19}

6.70 {0.26}

3.10 {0.12}

1.80 {0.07}

8

2.00 {0.08}

3.80 {0.15}

0.20 {0.01}

-

E

9

0.00 {0.00}

0.50 {0.02}

-

-

F

10

0.00 {0.00}

0.50 {0.02}

-

-

G

11

3.50 {0.14}

4.50 {0.18}

-

1.00 {0.04}

12

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

H

13

4.00 {0.16}

5.20 {0.21}

2.80 {0.11}

-

14

1.00 {0.039}

2.20 {0.09}

-0.20 {-0.01}

-

I

15

1.20 {0.058}

2.20 {0.09}

0.20 {0.01}

-

16

2.30 {0.09}

4.30 {0.17}

0.30 {0.01}

-

J

17

1.20 {0.05}

2.50 {0.10}

0.10 {0.004}

-

18

2.99 {0.12}

4.49 {0.18}

1.49 {0.06}

-

K

19

4.00 {0.16}

6.50 {0.26}

1.50 {0.06}

2.00 {0.08}

20

-1.50 {-0.06}

0.50 {0.02}

-3.50 {-0.14}

-

L

21

6.00 {0.24}

8.00 {0.32}

4.00 {0.16}

2.00 {0.08}

M

22

0.00 {0.00}

1.00 {0.04}

-

-

23

0.50 {0.02}

1.20 {0.05}

-0.20 {-0.01}

-

N

24

0.00 {0.00}

2.10 {0.08}

-2.10 {-0.08}

-

25

2.00 {0.08}

4.00 {0.16}

0.00 {0.00}

-

26

0.50 {0.02}

12.50 {0.06}

-0.50 {-0.02}

-

No.	Measurement part	Standard values (mm) {in}	Maximum values (mm) {in}	Minimum values (mm) {in}	Side by side difference (mm) {in}
A	1	6.00 {0.24}	7.00 {0.28}	5.00 {0.20}	1.20 {0.05}
A	2	-1.00 {-0.04}	0.00 {0.00}	-2.00 {0.08}	-
B	3	6.00 {0.24}	7.00 {0.28}	5.00 {0.20}	-
B	4	1.00 {0.04}	2.00 {0.08}	0.00 {0.00}	-
C	5	4.30 {0.17}	6.80 {0.27}	1.80 {0.07}	2.00 {0.08}
C	6	2.50 {0.10}	5.10 {0.20}	-0.10 {-0.004}	-
D	7	4.90 {0.19}	6.70 {0.26}	3.10 {0.12}	1.80 {0.07}
D	8	2.00 {0.08}	3.80 {0.15}	0.20 {0.01}	-
E	9	0.00 {0.00}	0.50 {0.02}	-	-
F	10	0.00 {0.00}	0.50 {0.02}	-	-
G	11	3.50 {0.14}	4.50 {0.18}	-	1.00 {0.04}
G	12	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
H	13	4.00 {0.16}	5.20 {0.21}	2.80 {0.11}	-
H	14	1.00 {0.039}	2.20 {0.09}	-0.20 {-0.01}	-
I	15	1.20 {0.058}	2.20 {0.09}	0.20 {0.01}	-
I	16	2.30 {0.09}	4.30 {0.17}	0.30 {0.01}	-
J	17	1.20 {0.05}	2.50 {0.10}	0.10 {0.004}	-
J	18	2.99 {0.12}	4.49 {0.18}	1.49 {0.06}	-
K	19	4.00 {0.16}	6.50 {0.26}	1.50 {0.06}	2.00 {0.08}
K	20	-1.50 {-0.06}	0.50 {0.02}	-3.50 {-0.14}	-
L	21	6.00 {0.24}	8.00 {0.32}	4.00 {0.16}	2.00 {0.08}
M	22	0.00 {0.00}	1.00 {0.04}	-	-
M	23	0.50 {0.02}	1.20 {0.05}	-0.20 {-0.01}	-
N	24	0.00 {0.00}	2.10 {0.08}	-2.10 {-0.08}	-
	25	2.00 {0.08}	4.00 {0.16}	0.00 {0.00}	-
	26	0.50 {0.02}	12.50 {0.06}	-0.50 {-0.02}	-
