WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION

id092100050100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

3.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

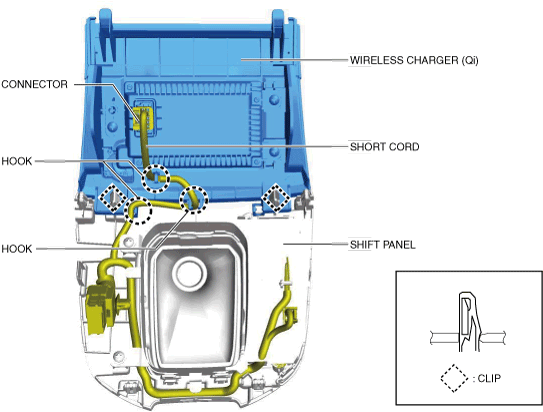

4.  Detach the hooks from the short cord shown in the figure.

ac9uuw00011355

5.  Disconnect the connector.

6.  Remove the wireless charger (Qi) while detaching the clips.

7.  Install in the reverse order of removal.
