Caution
• The control modules and control units have been designed with sufficient attention to radio wave disturbances from the outside. However, observe the following precautions when installing a radio set to the vehicle to prevent adverse effects on the control module and control unit.
-

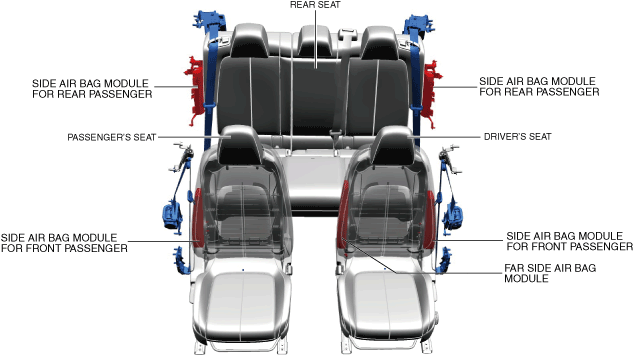

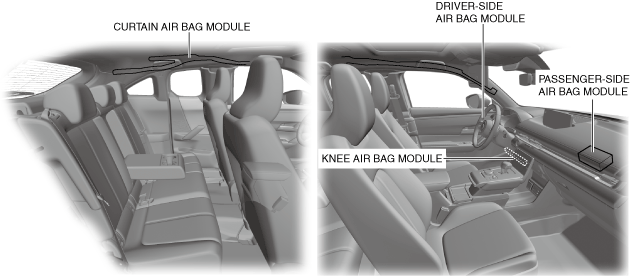

― Install the radio set and its antenna as far away as possible from the control module and control unit.― The antenna feeder generates radio waves, therefore, keep them 100 mm or more away from the control module or control unit, and wiring harness. If the antenna feeder and high voltage cable cross over the wiring harness, place them perpendicular to the wiring harness.― Do not install a high output radio set.― Do not use the control module and control unit power source for a radio set. In addition, do not use the accessory socket.― Do not attach the antenna feeder or wiring harness of a radio set to the wiring harness, fuel pipe, or brake pipes of the vehicle.― Do not install any radio set-related devices in the area where the air bag module deploys to prevent a secondary accident if the air bags were to deploy.
a30zzw00003907
a30zzn00000002― After installing the radio set, set the EV system to READY ON and emit test radio waves to verify that there is no effect on the vehicle systems.
