FRONT SUSPENSION


id021300701300


Outline

•  A strut type front suspension has been adopted.

Structural view

a30zzn00000035

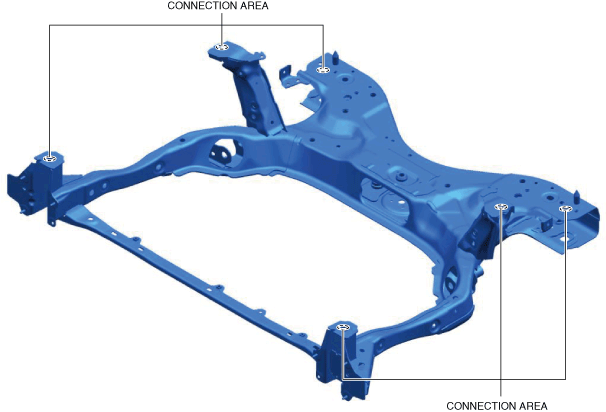

•  The connection area of the front crossmember and body is a 6-point rigid mount type.
a30zzn00000036

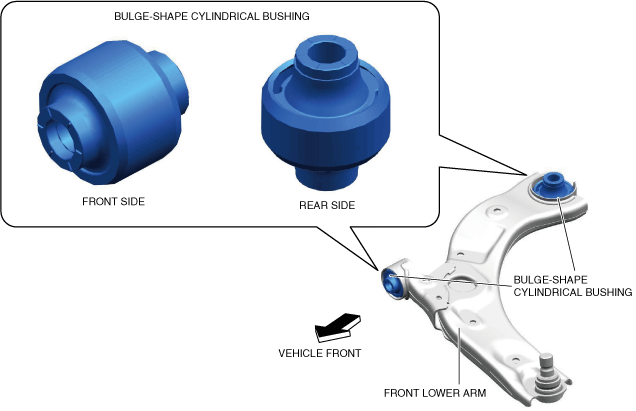

•  A bulge-shape cylindrical bushing has been adopted to the front lower arm bushing for improved, smooth suspension operation.
a30zzn00000037
