REAR SUSPENSION
id021400700800
Outline
• Torsion beam axle-type rear suspension has been adopted.
• Large-size rubber bushing has been adopted for the rear trailing arm bushing to enhance the handling performance and the ride comfort.

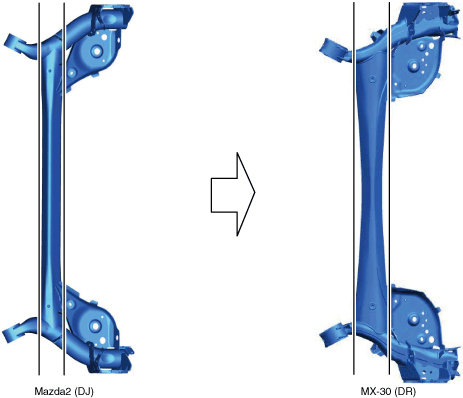

• A beam with a cross section having differing diameters*1 has been adopted to the torsion beam axle for assured high toe and camber rigidity.
:1 :The torsion beam has a small diameter in the center area and large diameters on both ends.
Construction

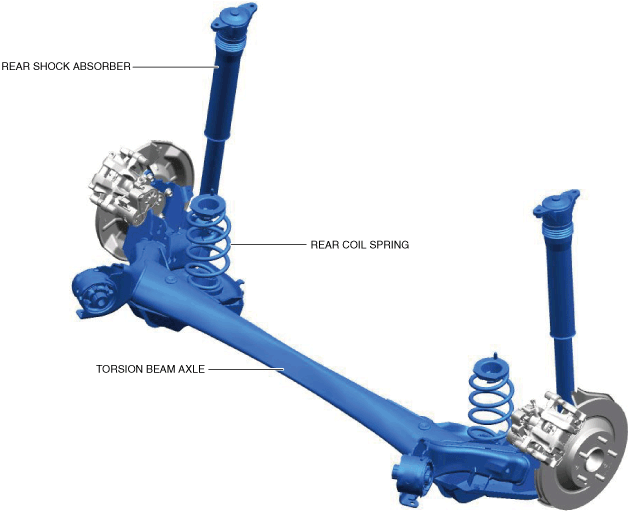

Structural view
• By adopting a beam with a cross section having differing diameters, the rigidity of both ends of the beam has been improved. As a result, changes in toe and camber are suppressed while driving.
